PD5
Photoelectric SwitchRanging type
Stable detection at 2.5m max.!
Not affected by background such as colors or luster!
Overview
Features
-> 2.5m long distance detection
-> Not affected by colors , materials or shape of detecting objects
-> Free-power type and DC power type are lined-up
-> Not affected by background, fine setting can be made
-> Not affected by colors , materials or shape of detecting objects
-> Free-power type and DC power type are lined-up
-> Not affected by background, fine setting can be made
Model
| Model No. | Part No. | Type | Detecting mode | Detectable range | Detection distance |
| PD5-1MA | RPD5001 | Free-power type | BGS | 0.2～1.0m | 0.1m～1.0m |
| PD5-2MA | RPD5002 | 0.2～2.5m | 0.1m～2.5m | ||
| PD5-1MC | RPD5003 | DC power type | BGS/FGS changeover | 0.2～1.0m | 0.1m～1.0m |
| PD5-2MC | RPD5004 | 0.2～2.5m | 0.1m～2.5m |
Specification
| Type | Free-power type | DC power type | ||
| Model No. | PD5-1MA | PD5-2MA | PD5-1MC | PD5-2MC |
| Power source | AC24 to 240V(±10%, 50/60Hz) DC12 to 240V(±10%, Ripple 10% or less) |
12 to 24VDC(±10%, Ripple 10% or less) | ||
| Light source | Infra-red LED(modulating system) | |||
| Light-reception element | Dual photo-diode | |||
| Current consumption | AC: 4VA or less DC: 3W or less |
45mA or less | ||
| Detectable range* | 0.2 to 1.0m | 0.2 to 2.5m | 0.2 to 1.0m | 0.2 to 2.5m |
| Output | 1a relay, 250VAC 3A, 30VDC 3A Electrical life : 0.1 million or more Mechanical life : 50 million or more |
NPN/PNP open-collector output(30VDC, 100mA or less), residual voltage : 1V or less(at 100mA) |
||
| Detection distance | 0.1 to 1.0m | 0.1 to 2.5m | 0.1 to 1.0m | 0.1 to 2.5m |
| Detecting mode | BGS | BGS/FGS changeover | ||
| Detectable object | Opaque/semi-transparent objects | |||
| Distance setting adjuster | Provided(mechanical 2-revolution adjuster with indicator) | |||
| Hysteresis* | 10% or less of operating distance | |||
| Repeated accuracy* (Vertical to the detection axis) |
4[mm] | 10[mm] | 4[mm] | 10[mm] |
| Operating mode | Light-ON/Dark-ON changeover | |||
| Response time | 20ms or less | 2msec or less | ||
| LED | Operating lamp(orange LED) : Lights up when output ON Stable lamp(green LED) : Lights up when operating stably |
|||
| Connection | Terminal box | |||
| Ambient illuminance | Incandescent lamp : 3,000lx or less, sun light : 10,000lx or less | |||
| Ambient temperature/humidity | -25 to +55 ℃(-30 to +70 ℃ when stored), not condensing and not icing, 35 to 85%RH | |||
| Vibration resistance | Double amplitude 1.5mm, 10 to 55Hz, Each 2 hour in X, Y and Z directions | |||
| Impact resistance | 500m/s2, Each 3 time in X, Y and Z directions | |||
| Withstand voltage | 1,500VAC/min. between charging part and case 2,000VAC/min. between power supply and output 1,000VAC/min. between contacts |
1,000VAC/min. between charging part and case | ||
| Insulation resistance | 100MΩ or more between terminal at charging part, non-metal at charging and relay | 20MΩ or more(250VDC megger) between charging part and case | ||
| Protective structure | IP67(IEC standard) | |||
| Case material | Case: ABS resin, cover: polycarbonate | |||
| Weight | Approx.100g | Approx.85g | ||
| Accessory | Adjusting tool, fitting metal, fitting screw | |||
| Conformity standard | Low Voltage Directive: EN IEC 60947-5-2 EMC Directive: EN IEC 60947-5-2 RoHS Directive |
|||
* Value for detectable range, detecting distance, hysteresis and repeated accuracy is by white paper with 200mm×200mm.
Information related to the Low Voltage Directive
| Type | Free-power type | |
| Mode No. | PD5-1MA | PD5-2MA |
| Open/close element function | AC-12/DC-12 | |
| Rated impulse withstand voltage | 2.5kV | |
| Output minimum working current | 5VDC 1mA or more | |
| Turn-on time/off time | 20ms/20ms Note:Turn-on time and turn-off time are measured values of the delay time between the reference sensor output and the measurement sensor output when the disk is rotated. |
|
| Maximum response frequency | 25Hz Note:Maximum response frequency is calculated below. Maximum response frequency = 1/(turn-on time+turn-off time) |
|
| Degree of contamination | 3(Factory environment) | |
| Electric shock protection class | Out of classification | |
| Margin gain | 12% Note: The margin gain is the value when the distance setting volume is set at the maximum distance setting range. The value for white matte paper (200x200mm). |
|
| Note | Note 1: Measurement condition not specified: Ambient temperature of use= +23℃ Note 2: Be sure to install short-circuit protection (fuse, breaker, etc.) at the power input and output. Also, use a fuse (quick break type) or breaker with a breaking current of 5A or less. |
|
Figure: Turn-on time / Turn-off time Measurement
Turn-on time and turn-off time are measured values of the delay time between the reference sensor output and the measurement sensor output when the disk is rotated.

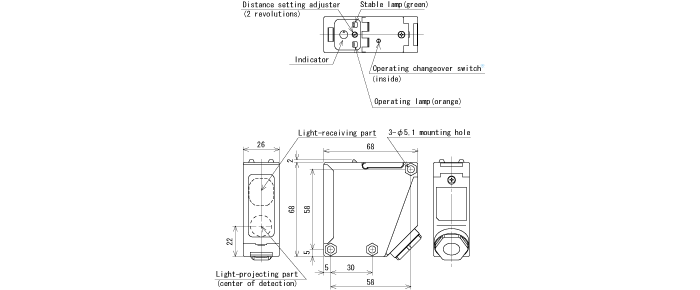

External dimension
Sensor
* For DC power type, it is changeover by dip switch

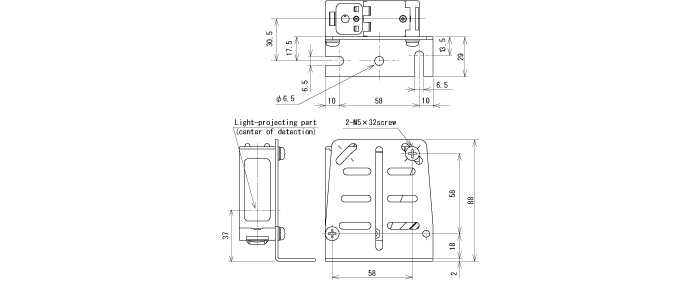

Dimension with fitting metal
I/O Circuit

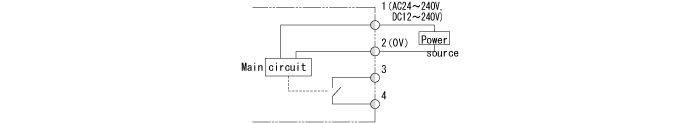

Free power type

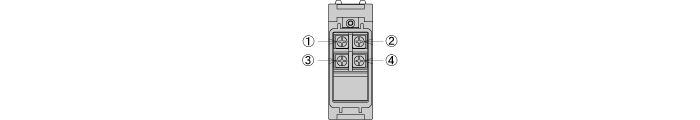

Terminal arrangement

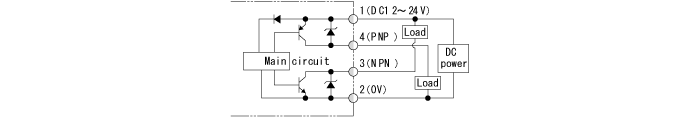

DC power type
