On-delay / off-delay of LiDAR

What are on-delay and off-delay?

On-delay is the response time when transitioning from the detected state to the non-detected state.
Off-delay is the response time when transitioning from the non-detection state to the detection state.
Note: For the UXM / URM series, the on and off delay operations are reversed.


On-delay and off-delay of the output signal can be set within the range of one scan to several scans using the application software.


(1 scan at the time of shipment from the factory. Please check the product specifications for the setting range.) Setting a longer delay improves stability, but slows down the response speed of the output signal, which reduces detection performance for moving objects and requires a longer safe distance. When using it, perform sufficient pre-verification before setting the on-delay and off-delay.

Operation concept

Note: For the UXM / URM series, the on and off delay operations are reversed.

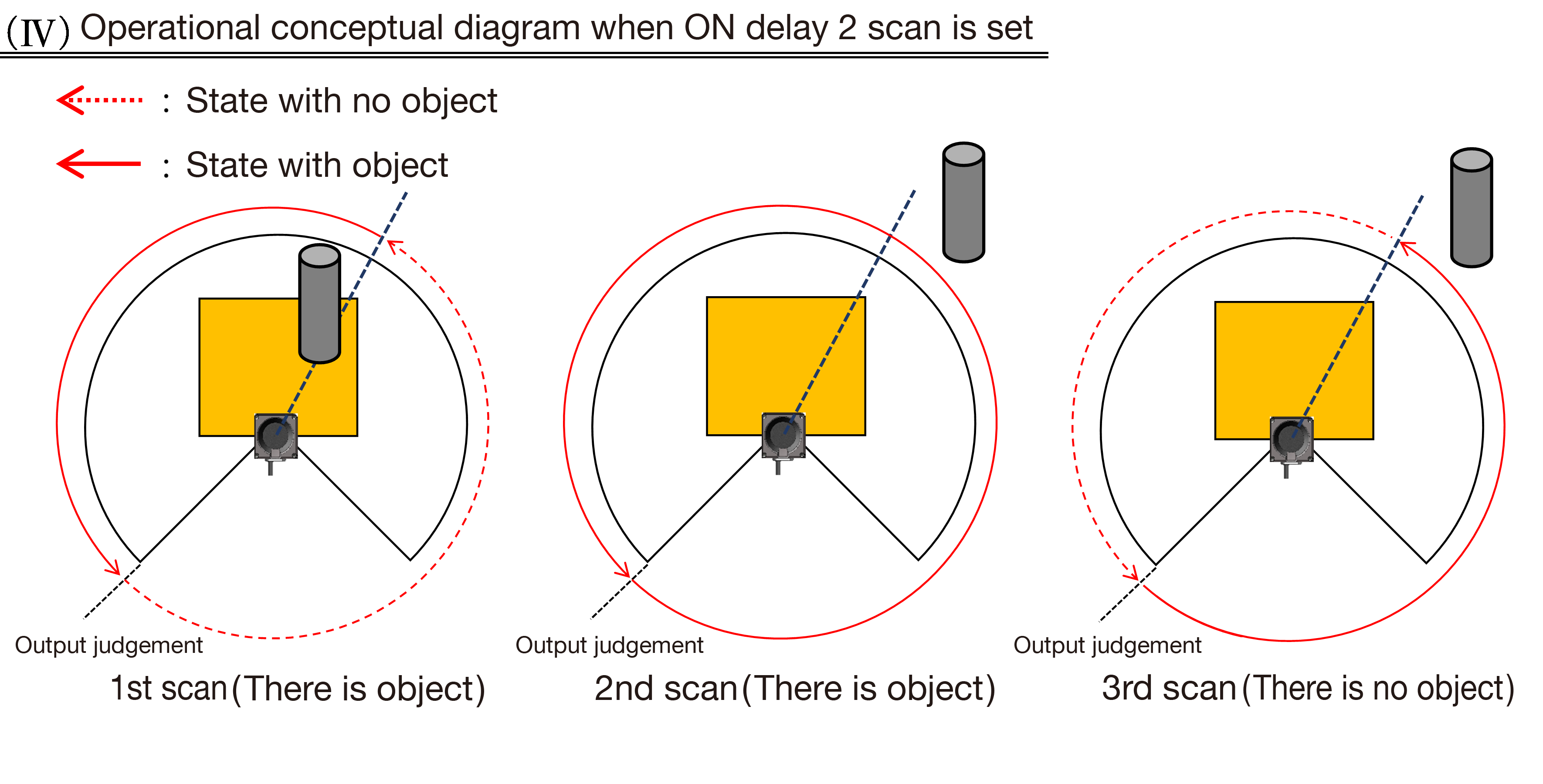

Operation concept

Note: For the UXM / URM series, the on and off delay operations are reversed.

Operation concept

Note: For the UXM / URM series, the on and off delay operations are reversed.

Operation concept

Note: For the UXM / URM series, the on and off delay operations are reversed.
