Optical remote controller

The receiver outputs by operating the transmitter like a key in the same way as a TV remote control.
It is an industrial remote controller.
Since it can be operated by human hands, it is very useful for maintenance of automatic guided vehicles and opening/closing of shutters.

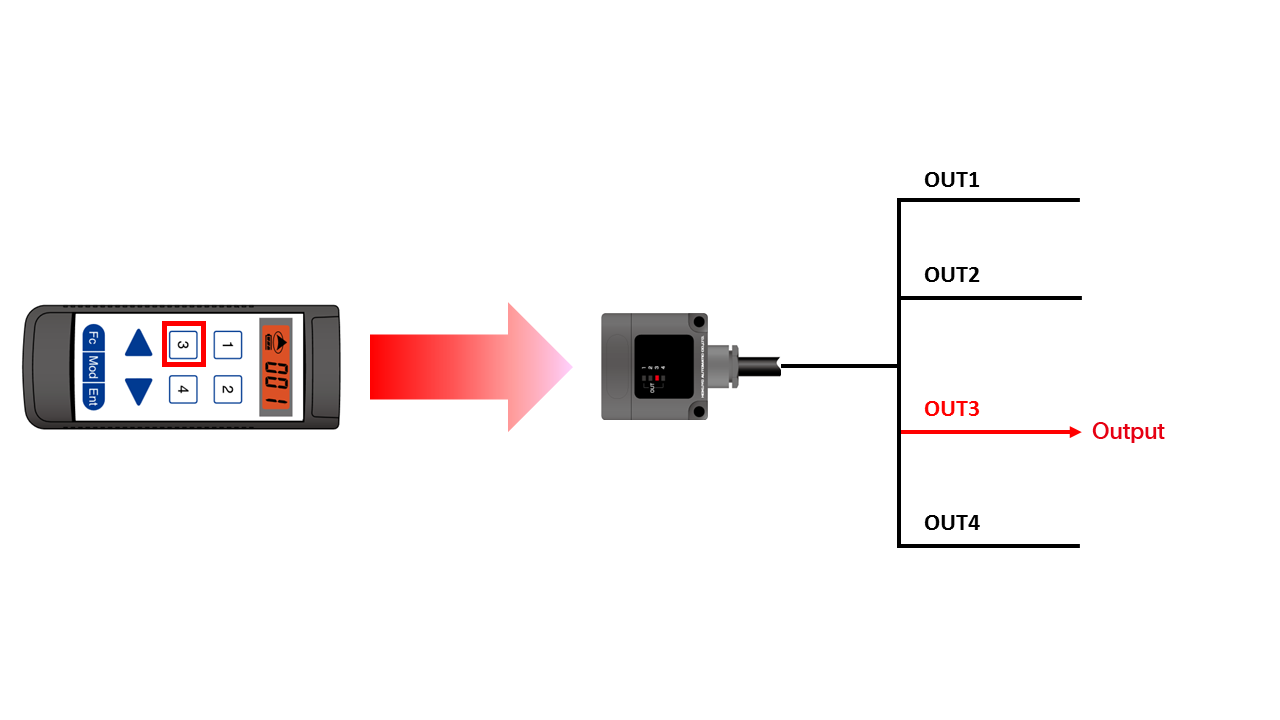

When you press the send key on the optical remote controller, the receiver will receive the signal and will output signal according to the sending key. For example, if you press send key 3, the receiver will output OUT3 to the outside.

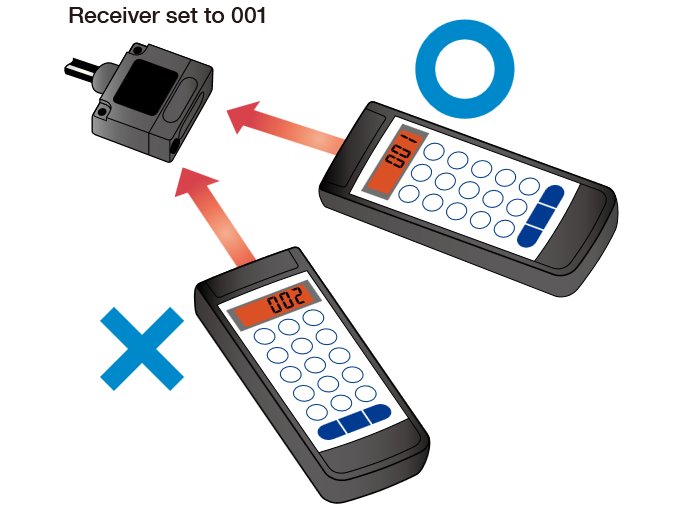

When you use the multiple remote controllers and receivers at one site, there is an ID registration setting function to prevent erroneous output due to unrelated signals.
Receiver will output only when a signal from the same ID number as the registered one in advance on the receiver side.
Even if a signal from a transmitter other than the registered ID number is received, it will not be output.
The function name and the number of ID numbers that can be set will be differed depending on the series.

Series name	Function name	Settable number
BRS series	ID number setting	999 ways
BRC series	F number setting	F1 to F9 or F001 ~ F255 (selected by mode selector switch)

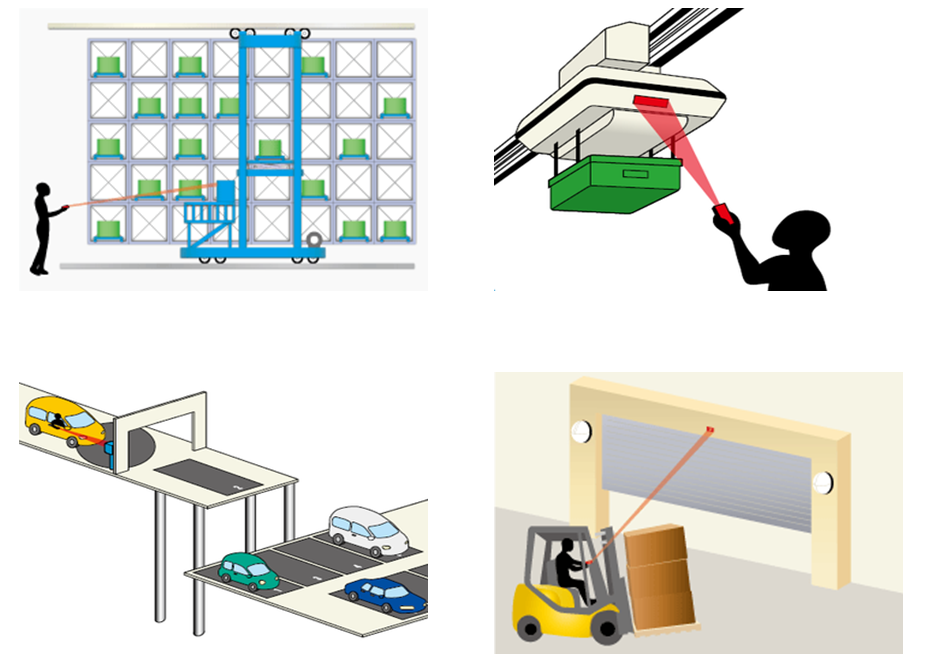

It is widely used to instruct the destination of ceiling carts and stacker cranes.
In addition, a remote control is able to open/close the shutter or call the multi-storey car parking without getting out of the car each time.
