Photoelectric SwitchBuilt-in Amplifier
This product is no longer in production or sales.

High Functions and Water-proof!

Overview

Features

-> Protective structure is IP67.
-> Connector type for easy maintenance is lined-up.
-> Stable lamp provides.
-> Installing strength is twice because inserting fitting metal is applied.
-> Both PNP and NPN output are lined-up.
-> Detecting distance is 10m for through-beam type, is 2.6m for retro-reflection type and is 0.5m for diffuse reflection type.

Specification

Kind Through-beam type Retro-reflection type Diffuse-reflection type
Basic Short-distance
Mode No. Cable PEX-105C PEX-105A PEX-263C PEX-263A PEX-501C PEX-501A PEX-002C
Connector PEX-105C-J PEX-105A-J PEX-263C-J PEX-263A-J PEX-501C-J PEX-501A-J PEX-002C-J
Power source 10 to 30VDC(Ripple 10% or less)
Current consumption Projector : 20mA or less, Receiver : 15mA or less
Light source Red LED
Detecting distance 10m 2.6m*1 0.5m*2 1 to 70mm*2
Detectable objects Opaque objects with φ12mm or more Opaque objects with φ50mm or more*1 Transparent/opaque objects
Response time 0.5msec or less
Operating mode Changeover by switch(L : Light-ON, D : Dark-ON)
Output NPN PNP NPN PNP NPN PNP NPN
Control output NPN/PNP open-collector, 100mA 30VDC or less, Residual voltage 1.8V 100mA or less
Sensitivity adjuster Fixed*3 Provided
LED Stable lamp : Green LED, Operating lamp : Orange LED*4
Connection Cable : φ3.8mm, 2m long, 3 cores*5, Connector : M8(4 pins) connector
Ambient illuminance Incandescent lamp : 3,000lx or less, Sun light : 10,000lx or less
Ambient temperature/humidity -25 to +55 degrees C(-40 to +70 degrees C 70 degrees C when stored), 35 to 85%RH(35 to 90%RH when stored), Not condensing
Vibration resistance Double amplitude 1.5mm, 10 to 55Hz, each 2 hour in X, Y and Z directions
Impact resistance 1,000m/s2, Each 3 time in X, Y and Z directions
Protective structure IP67(IEC standard)
Case material Body : resin with ABS glass fiber, Lens(Front cover) : PMMA resin
Weight Approx. 50g
Attachment Fitting metal Fitting metal, reflector(RRP-50S-V) Fitting metal
*1 When using RRP-50S-V
*2 Using white paper with 20cm□
*3 PEX-105C-0V01 with sensitivity adjuster is lined-up.
*4 Not provides with projector
*5 Only projector is 2 cores

External dimension

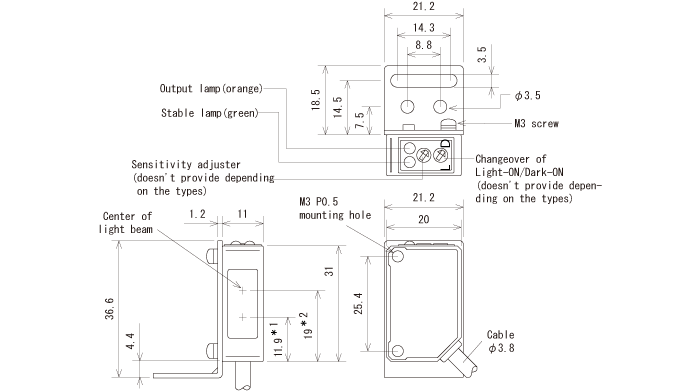

Lead wire type

Lead wire type
*1 Center position of projecting-light for retro/refuse-reflection type.
*2 Center position of projecting/receiving-light for through-beam type and center position of receiving-light for retro/refuse-reflection type.

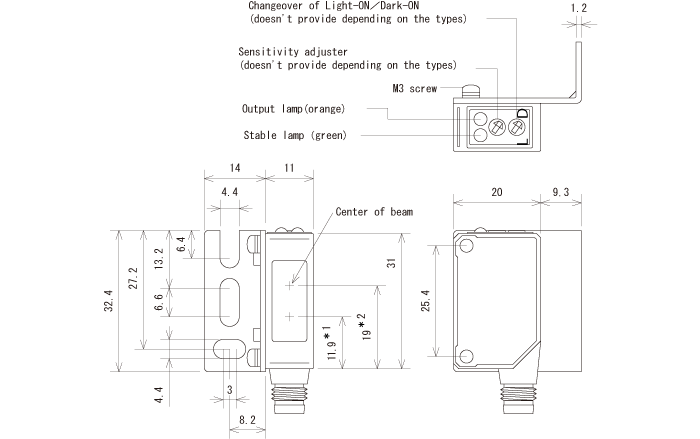

Connector type

Connector type
*1 Center position of projecting-light for retro/refuse-reflection type.
*2 Center position of projecting/receiving-light for through-beam type and center position of receiving-light for retro/refuse-reflection type.

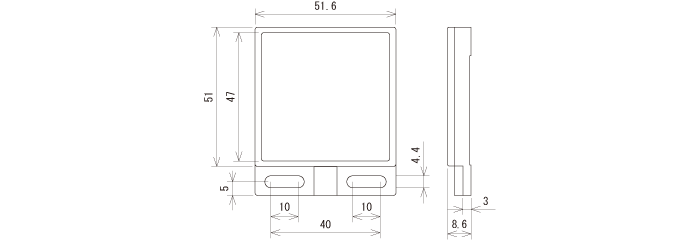

Reflector

Reflector
(Attached to retro-reflection type)

I/O Circuit

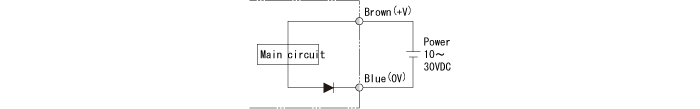

Through-beam type projector

Through-beam type projector

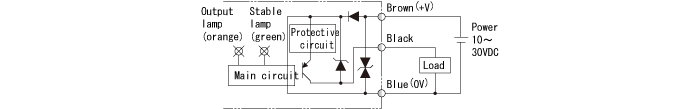

NPN output

NPN output

PNP output

PNP output

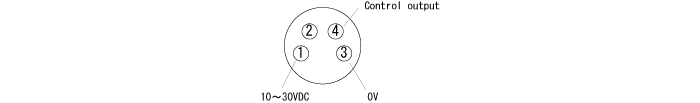

Connector Pin No.

Connector Pin No.
