PD-10M/8NM
Photoelectric SwitchOptical Distance Measurement
Converting distance data to analog!
Provided comparator output
Overview
Features
-> This sensor is an optical distance sensor with infrared ray.
-> This sensor provides comparator output(2 output) that can set optional distance value and alarm output that executes at the out of detectable area.
-> This sensor provides light-emission stop output for preventing interference.
-> This sensor provides comparator output(2 output) that can set optional distance value and alarm output that executes at the out of detectable area.
-> This sensor provides light-emission stop output for preventing interference.
Specification
PD-10M/PD-10M2
*1 Reflection sheet is available, too. Ask us.
*2 It doesn`t measure during 200msec after putting power source on.
PD-8NM1
* It doesn`t measure during 200msec after putting power source on.。
| Model No. | PD-10M | PD-10M2 | |
| Power source | 24VDC(±10%, ripple 10% or less) | ||
| Current consumption | 125mA or less | ||
| Detecting distance | 0.2 to 10m(when using specified reflector) | ||
| Detectable objects | Plastic reflector with φ100mm(specified reflector)*1 | ||
| Repeatability | ±100mm | ||
| Absolute accuracy | ±200mm | ||
| Hysteresis | 300mm | ||
| Resolution | 40mm | ||
| Output | Distance analog output | 0 to 10V(Output impedance 100Ω) | 10 to 0V(Output impedance 100Ω) |
| Alarm output | NPN open-collector output(30VDC, 50mA or less), ON when normal operation/OFF when it is out of detection area or light-reception level is less than rated value | ||
| Comparator output(OUT 1,2) | NPN open-collector output(30VDC, 50mA or less), OFF when it is within detection distance | ||
| Input | Contact or transistor input, Stop to emit by shorting to -VIN(0V)(Alarm lamp lights up) | ||
| Lamps | Power lamp(Green LED) : Lights up when putting power source on Alarm output lamp(Red LED) : Lights up when alarm output is getting OFF Comparator output lamp(Orange) : Lights up when it is within detection distance |
||
| Directional angle | ±2.5° | ||
| Response time | 50msec or less*2 | ||
| Connection | Cable 1m long | ||
| Ambient illuminance | Halogen and incandescent lamp : 10,000lx or less, fluorescent lamp : 6,000lx or less | ||
| Ambient temperature/humidity | -10 degrees C to +50 degrees C, 85%RH or less(Not icing) | ||
| Vibration resistance | 10 to 55Hz Double amplitude 1.5mm Each 2 hour in X, Y and Z directions | ||
| Impact resistance | 490m/s2 Each 10 time in X, Y and Z directions | ||
| Case | Polycarbonate | ||
| Weight | Sensor : approx. 200g, RRP-100 : approx. 65g | ||
*2 It doesn`t measure during 200msec after putting power source on.
PD-8NM1
| Model No. | PD-8NM1 | ||
| Power source | 24VDC(±10%, ripple 10% or less) | ||
| Current consumption | 125mA or less | ||
| Detecting distance | 0.2 to 8m(when using 2 pcs of specified reflector) | ||
| Detectable objects | 2 pcs of plastic reflector with 80mm□(specified reflector) | ||
| Repeatability | ±100mm | ||
| Absolute accuracy | ±200mm(at 5m or less), ±300mm(at 5m or more) | ||
| Hysteresis | 300mm | ||
| Resolution | 40mm | ||
| Output | Distance analog output | 0 to 10V(Output impedance 100Ω) | |
| Comparator output(OUT 1,2,3) | NPN open-collector output(30VDC, 50mA), OFF when it is within detection distance | ||
| Input | Contact or transistor input, Stop to emit by shorting to -VIN(0V)(Alarm lamp lights up) | ||
| Lamps | Power lamp(Green LED) : Lights up when putting power source on Alarm output lamp(Red LED) : Lights up when alarm output is getting OFF Comparator output lamp(Orange) : Lights up when it is within detection distance |
||
| Directional angle | ±2.5° | ||
| Response time | 50msec or less | ||
| Connection | Cable 1m long | ||
| Ambient illuminance | Halogen and incandescent lamp : 10,000lx or less, fluorescent lamp : 6,000lx or less | ||
| Ambient temperature/humidity | -10 degrees C to +50 degrees C, 85%RH or less(Not icing) | ||
| Vibration resistance | 10 to 55Hz Double amplitude 1.5mm Each 2 hour in X, Y and Z directions | ||
| Impact resistance | 490m/s2 Each 10 time in X, Y and Z directions | ||
| Case | Polycarbonate | ||
| Weight | Sensor : approx. 200g, exclusive reflector for PD8 : approx. 42g | ||
External dimension

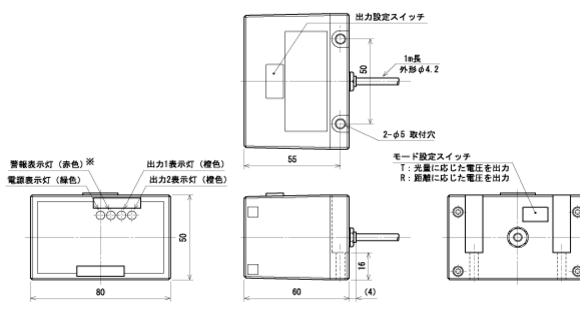

Sensor
* Output 3 in case of PD-8NM1

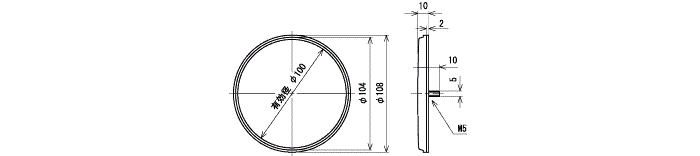

Reflector RRP-100

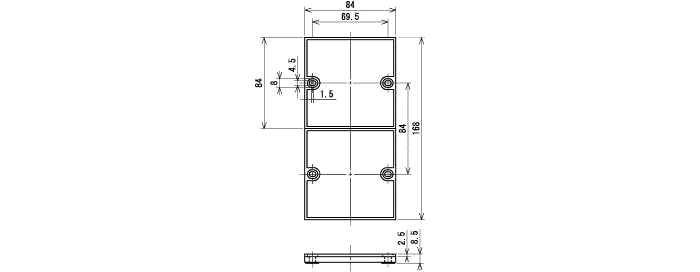

Exclusive reflector for PD-8NM1
I/O Circuit

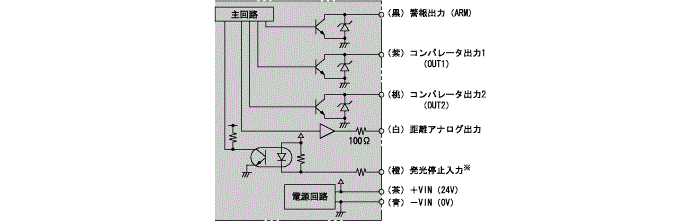

PD-10M/PD-10M2

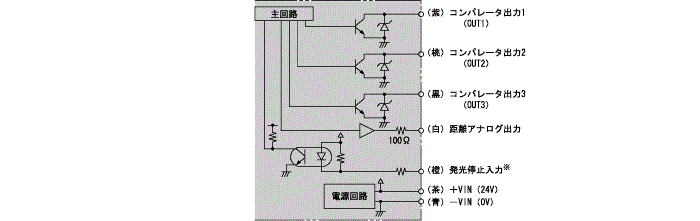

PD-8NM1
* It can stop to emit by short-circuited to -VIN(0V)
