BWF-11/21/31/41

Optical Data Transmission DeviceSerial type

High performance in compact and light weight of handy size, 44 x 84 x 130.3mm!
Long distance, 100m and 200m!
400m type is also available in the same size!

Overview
Specification
External dimension
I/O Circuit
Downloads

Overview

Features

-> Actual transmission distance is 2 times or more than rated value and data transmission with high reliability is realized.
-> Many kinds of interface are lined up, RS-232C, RS-422, current-loop and RS-422/RS-485 multi-drop, etc.
-> Level lowering warning output is provided due to prevent some troubles such as dislocation of optical axis or dirty lens surface.
-> It can be easy to check optical axis adjustment with optical checker or checking terminal.

Specification

Model No.	BWF-11A/11B	BWF-21A/21B	BWF-31A/31B	BWF-41A/41B
Transmission distance	100m	200m	100m	200m
Directional angle	±2°	±1°	±2°	±1°
Transmission method	Full-duplex two-way transmission
Transmission speed	DC to 19.2kbps
Interface	RS-232C/RS-422
Modulation method	FSK modulation
Modulated frequency	A type(Transmission:5.5MHz, reception:6.0MHz), B type(Transmission:6.0MHz, reception:5.5MHz)
Power source	12 to 24VDC(Allowable operating voltage 10 to 30VDC)		100VAC(Allowable operating voltage 85 to 110VAC) 50/60Hz
Current consumption	150mA or less(when 12VDC), 80mA or less(when 24VDC)		40mA
Indications lamps	Power source, carrier detect, data input, data output, light-reception level margin(Red LED) POW(Power lamp): Light-up when power source ON CD(Carrier detect lamp): Light-up when light-reception, light-reception margin level 1 SD(Data input lamp): Light-up when transmission data input RD(Data output lamp): Light-up when reception data output L1(Light-reception level lamp): Light-up when margin 1.5 times L2(Light-reception level lamp): Light-up when margin 2 times L3(Light-reception level lamp): Light-up when margin 2.5 times
Warning output (ARM)	ON when light-receiving level margin 1.5 times or more and OFF when it is 1.5 times or less, Photo-coupler(35V, 50mA)
Light-reception level output	0 to 5V(in proportion to light-reception amount)
Connection	Connector type(D-sub connector with 25-pin), M3 screw terminal for power source
Ambient illuminance	20,000lux or less(sunlight/incandescent lamp)
Ambient temperature/humidity	-10 to +50 degrees C, 85%RH or less(not icing)
Protective structure	IP60(IEC standard), IP64 is available if option parts are used

Note) Ask us about current-loop and multi-drop interface.

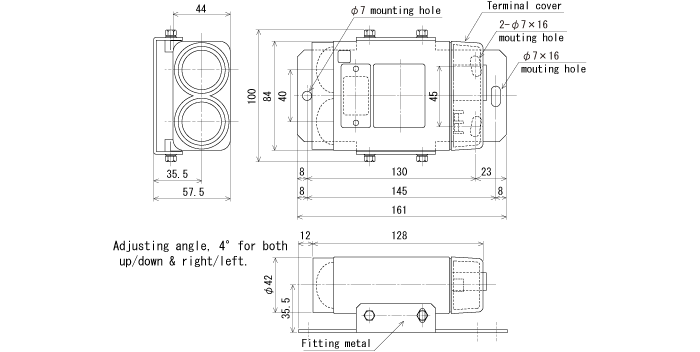

External dimension

I/O Circuit

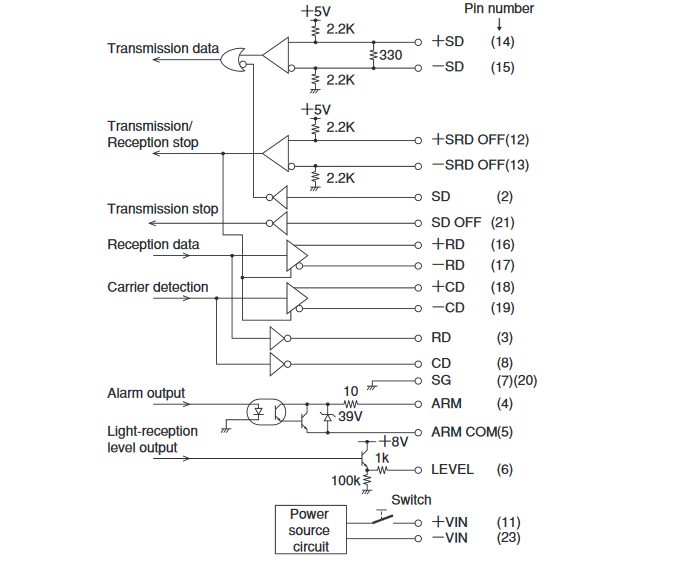

Input/output circuit

Connection

Power terminal(M3 screw terminal)
Make sure to connect +V to terminal at left side for DC power.
DC power provides on connector for interface too. Connect either one.

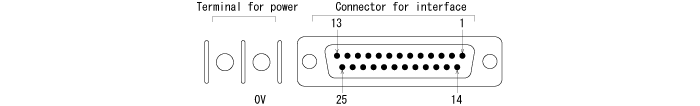

Connector for interface

Interface	Pin No.	Symbols	Functions
RS-232C	2	SD	Transmission data
	3	RD	Reception data
	8	CD	Reception carrier detect
	21	SD OFF	Transmission stop
RS-422	14	+SD	Transmission data(+)
	15	-SD	Transmission data(-)
	16	+RD	Reception data(+)
	17	-RD	Reception data(-)
	18	+CD	Reception carrier detect(+)
	19	-CD	Reception carrier detect(-)
	12	+SRD OFF	Transmission/reception stop(+)
	13	-SRD OFF	Transmission/reception stop(-)
Level	6	LEVEL	Light-reception level output
-	7・20	SG(OV)	Ground for signal
Warning	4	ARM	Warning output (ARM)
Warning	5	ARM COM(OV)	Warning output (ARM)
Power source	11	+VIN	DC Power（voltage 10 to 30VDC)
Power source	23	-VIN(OV)	DC Power（voltage 10 to 30VDC)

Note) Don`t connect 0V for power source to ground for signal(SG).
