ISP-A1C

ISP-A1C

Optical Data Transmission DeviceSerial/Parallel Converter

This device can convert serial data into parallel output or parallel input into serial data.
This device can transmit so many I/O signals with a few signal line.
This device is much higher speed than usual type.

Overview

Features

-> It can transmit signals with 16 points max./unit for both input and output.
-> It can extend up to 128 points max. by increasing units.
-> It can make a high-speed transmission with 62.5kbps.
-> It can make a DIN-rail mounting with 35mm pitch.

Specification

Model No. ISP-A1C*(Main and sub unit)
Power source 18 to 30VDC(ripple10% or less),100mA(except for photo-coupler interface)
Current consumption Input 85mA or less, output 850mA or less
Serial interface Type RS-422 and RS-485
Transmission method Full-duplex two-way transmission system
Transmission speed 62.5k/19.2k/9,600/4,800/2,400bps(Changeover)
Transmission distance Host communication: 500m(Total length)
Local communication: 2mMAX. (Between stations)
Parallel interface Input signal numbers 16 points(It can extend up to 128 points by increasing units)
Input circuit Photo-coupler isolation
Input voltage: 18V to 30VDC(Using voltage is supplied from inside)
Input current: 5mA/1 point, 85mA/1 unit
Output signal numbers 16 points(It can extend up to 128 points by increasing units)
1 point(Alarm output)
Output circuit Photo-coupler isolation
Input voltage: 18V to 30VDC(Using voltage is supplied from inside)
Input current: 50mA/1 point, 85mA/1 unit
Ambient temperature/humidity -10 to +50 degrees C, 85%RH or less
Connection Screw terminal for power source, connector for the others
Case ABS resin(body), polycarbonate resin(cover)
Weight Approx. 260g
* Use this device with BWF series. If CWF series, use ISP-A1C-C.

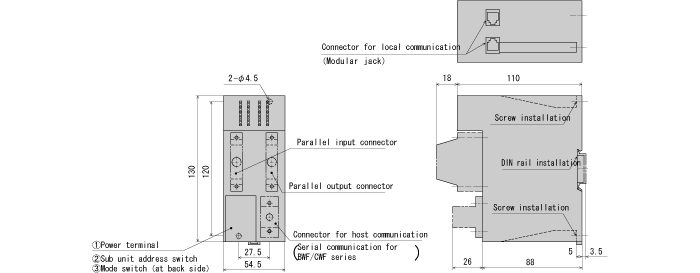

External dimension

External dimension

External dimension

I/O Circuit

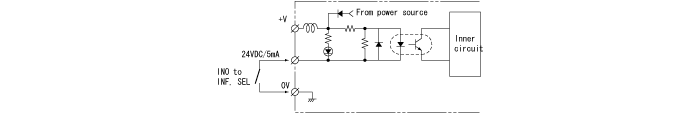

Parallel input

Parallel input
+V is supplied from +24V. 0V is common use for power terminal 0V.

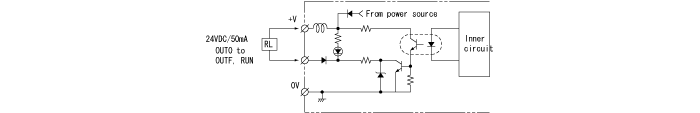

Parallel output

Parallel output
+V is supplied from +24V. 0V is common use for power terminal 0V.

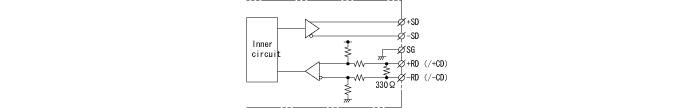

Serial input/output

Serial input/output

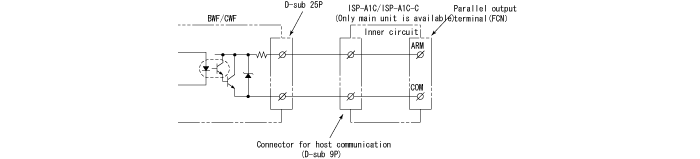

Warning output

Warning output

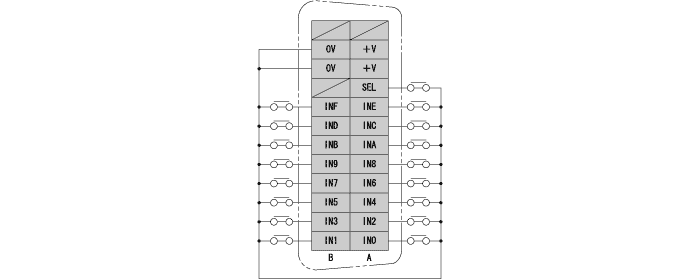

Connection /Parallel input

Connection /Parallel input

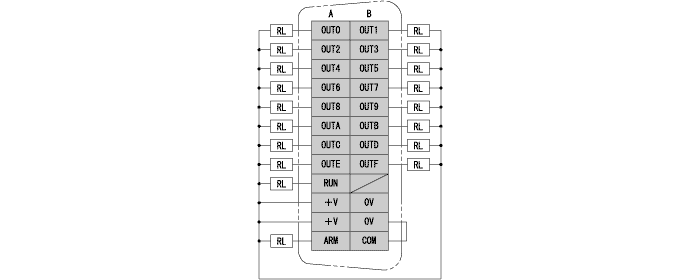

Connection /Parallel output

Connection /Parallel output
* Ask us about details specifications.
