Sensor for Iron & Steel IndustryCMD
Fiber optic laser type CMD. The projector and receiver are composed of an amplifier unit, sensor head, and heat-resistant fiber, and are ideal for detection steel materials in harsh environments at steel plants and heavy industry.
Since it uses a semiconductor laser, it detects with a high margin even in a bad environment compared to the LED type.
Overview
Features
This is an optical fiber type CMD using semi-conductor laser as light source. This equipment is composed of This equipment is composed of projector, receiver, sensor head, heat-resistance fiber unit and detects steel materials which passes through between them.
It emits more powerfully compared with LED type so that high performance with margin in bad environment is possible.
It emits more powerfully compared with LED type so that high performance with margin in bad environment is possible.
It detects with a high margin even in a bad environment compared to the LED type.
Since it uses a semiconductor laser and has an extremely high emission output compared to the LED type, it can detect with a high margin even in harsh environments.
This is safe design because laser beam doesn't emit if fiber is not connected.
Sensor head is not required water-cooling or air-purge
Water-cooling or air-purge isn't required for sensor head because non-air dust purge hood is applied.
Flexible power source range
It is capable of being used within the scope of 100 to 240VAC.
8-point LED display unable to monitor the margin and light projection state.
Warning output is provided
Specification
| Model No. | Amplifier : Basic type LAV-10P/Strong power type LAV-11P (Projector), LAV-10A (Receiver) Sensor head : FHM-211-1 or FHM-311 Fiber unit*1 : FHV-321(2m), FHV-351(5m), FHV-411(10m) |
| Safety standard | LAV-10P : Class 1 (JIS C6802), LAV-11P : Class 3R (JIS C6802) |
| Detectable objects | Steel material with φ100mm or more (FHM-311) |
| Detecting distance | 50m (Detection margin : 10,000 times or more at 10m*2) |
| Power source | 100 to 240VAC (+10%, - 15%, 50/60Hz) |
| Power consumption | Projector : 5VA or less, Receiver : 5.5VA or less |
| Control output | 1C relay contact (250VAC 3A, 30VDC 5A, COSφ=1), Non-contact output (120V, 100mA) Note) Warning output : Non-contact output (120V, 50mA) |
| Warning output | |
| Light-emitting amount Lowering output | |
| Analog voltage output | DC voltage output in proportion to light-receiving amount (Saturated value 9V or more but do not use it except for adjustment) |
| Response time | Contact output : 40msec or less, transistor output : 30msec or less |
| Operating mode | Changeover of DARK-ON/LIGHT-ON |
| Connection | Connector type (Cable 2m) |
| Fiber unit characteristics | Allowable bending radius : 100mm, Max. pressure : 784MPa, Tension strength : 490N |
| Ambient illuminance | Incandescent lamp : 10,000lux |
| Ambient temperature | Amplifier : -10 to +55 degrees C (Not freezing) Sensor head/Fiber unit : -10 to +200 degrees C (Not freezing) |
| Ambient humidity | 45 to 85%RH (Not condensing) |
| Insulation resistance | 20MΩ or more(1,000V megger between power/output contact and case) |
| Withstand voltage | 1,500VAC/min. (Between power/output contact and case) |
| Vibration resistance | 10 to 55Hz Double amplitude 1.5mm Each 2 hour in X, Y and Z directions |
| Impact resistance | 490m/s2, Each 3 time in X, Y and Z directions |
| Protective structure | Amplifier : IP64 (IEC standard) Sensor head : IP66 (IEC standard) Fiber unit : Corrugated tube with blade (SUS) |
| Case | Amplifier : Aluminum die-casting, Sensor head : Aluminum |
| Weight | Amplifier : Approx. 950g Sensor head : FHM-211-1 approx. 1.5kg, FHM-311 approx. 4.0kg, Fiber unit : FHV-321 approx. 1.0kg, FHV-351 approx. 1.8kg, FHV-411 approx. 2.8kg |
*2 In case of using FHV-321 and FHM-211
*PhotoMOS relay type is also available.

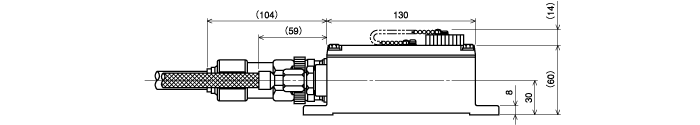

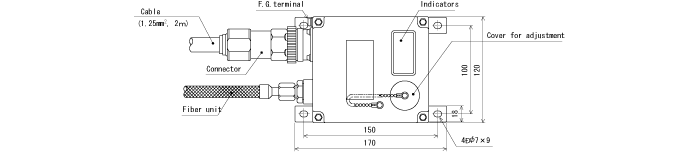

External dimension
External dimension
External dimension
I/O Circuit

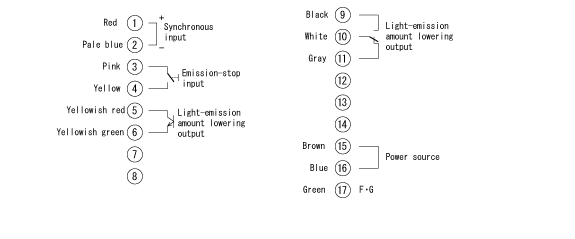

Projector
Light-projecting amount lowering output
| Operating mode | NOMAL | ABNOMAL | |||||
| Pin No. of connector | 5-6 | 9-10 | 10-11 | 5-6 | 9-10 | 10-11 | |
| Power-OFF state | OFF | OPEN | CLOSE | OFF | OPEN | CLOSE | |
| Power-ON state | When normal | ON | CLOSE | OPEN | OFF | OPEN | CLOSE |
| When troubled | OFF | OPEN | CLOSE | ON | CLOSE | OPEN | |

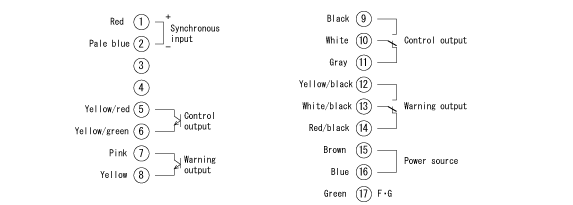

Receiver
Control output(Changeover by inner switch)
Warning output
| Operating mode | Light-ON | Dark-ON | |||||
| Pin No. of connector | 5-6 | 9-10 | 10-11 | 5-6 | 9-10 | 10-11 | |
| Power-OFF state | OFF | OPEN | CLOSE | OFF | OPEN | CLOSE | |
| Power-ON state | When light-entering | ON | CLOSE | OPEN | OFF | OPEN | CLOSE |
| When light-interrupting | OFF | OPEN | CLOSE | ON | CLOSE | OPEN | |
Warning output
| Pin No. of connector. | 7-8 | 12-13 | 13-14 | |
| Power-OFF state | OFF | OPEN | CLOSE | |
| Power-ON state | When normal | ON | CLOSE | OPEN |
| When troubled | OFF | OPEN | CLOSE | |
Characteristics Data

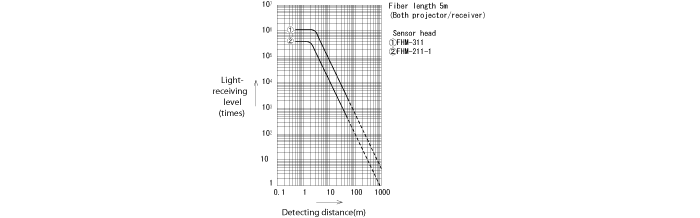

Projector/receiver LAV-10P/LAV-10A

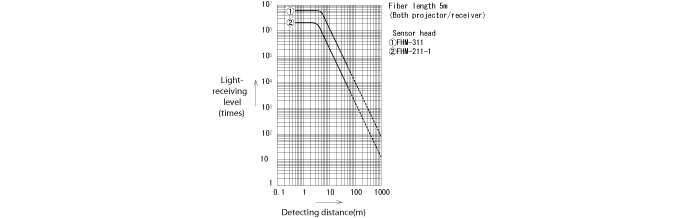

Projector/receiver LAV-11P/LAV-10A
