Sensor for Iron & Steel IndustryHMD
It operates by detecting infrared rays (heat rays) radiated from the heat material. Composed of an amplifier unit, sensor head, and heat-resistant fiber unit, it is ideal for detecting steel materials at steel plants and heavy industry in harsh environments. Detectable hot metal temp is 360 to 1,200 degrees C
Overview
Features
This equipment detects radiant heat from the material. It displays reception level lamps in every twice using linear characteristic relationship between temperature and analog output voltage (8 levels).
Operation setting can be made with level display or analog voltage. Also, there are three ranges, L/M/H as detection temperature changeover switch.
Any parts such as slits etc. are not required for 350 to 1,200 degrees C. It is epoch-making HMD that operation point setting is possible with detecting condition before operation.
Operation setting can be made with level display or analog voltage. Also, there are three ranges, L/M/H as detection temperature changeover switch.
Any parts such as slits etc. are not required for 350 to 1,200 degrees C. It is epoch-making HMD that operation point setting is possible with detecting condition before operation.
Flexible power source range
It is capable of being used within the scope of 100 to 240VAC.
Sensor head is not required water-cooling or air-purge
Water-cooling or air-purge isn't required for sensor head because non-air dust purge hood is applied.
Warning output is provided
Specification
| Model No. | Amplifier : | PRV-10A*1 |
| Sensor head : | FHM-201 (Basic type), FHM-203 (Narrow directivity type), FHM-201-8WA (Wide directivity type) |
|
| Fiber unit *2 : | FHV-321 (2m), FHV-351 (5m), FHV-411 (10m) | |
| Power source | 100 to 240VAC (+10%, -15%, 50/60Hz) | |
| Power consumption | Projector : 5VA or less, Receiver : 5.5VA or less | |
| Detectable objects | Heated material with 360 to 1,200 degrees C | |
| Detecting distance | 5m (Different depending on the size or temperature of detectable objects against detection range, or fiber length*3) | |
| Control output | 1C relay contact (250VAC 3A, 30VDC 5A, COSφ=1), Non-contact output (120VAC or less, 100mA) | |
| Warning output | 1C relay contact (250VAC 3A, 30VDC 5A, COSφ=1), Non-contact output (120VAC or less, 50mA) | |
| Analog voltage output | Light-receiving amount or Operation level (can change over setting) (Do not use it except for adjustment) |
|
| Response time | Contact output : 20msec or less, Non-contact output : 5msec or less | |
| Operating mode | Changeover of DARK-ON/LIGHT-ON | |
| Connection | Connector type (Cable 2m) | |
| Indication lamp | Power (Green), Operation (Orange), Warning (Red), Analog Mode (Red), Light-receiving Level 8-point (Orange) |
|
| Fiber unit characteristics | Allowable bending radius : 100mm, Max. pressure : 784MPa, Tension strength : 490N | |
| Ambient temperature | Amplifier : -10 degrees C to +55 degrees C (Not freezing) | |
| Sensor head/Fiber unit :-10 degrees C to +200 degrees C (Not freezing) | ||
| Ambient humidity | 45 to 85%RH (Not condensing) | |
| Insulation resistance | 20MΩ or more (Between power/output contact and case) | |
| Withstand voltage | 1,500VAC/min. (Between power/output contact and case) | |
| Vibration resistance | 10 to 55Hz Double amplitude 1.5mm Each 2 hour in X, Y and Z directions | |
| Impact resistance | 490m/s2, Each 3 time in X, Y and Z directions | |
| Protective structure | Amplifier : IP64 (IEC standard) Sensor head : IP66 (IEC standard) Fiber unit : Corrugated tube with blade (SUS) |
|
| Case | Amplifier : Aluminum die-casting, Sensor head : Aluminum | |
| Weight | Amplifier : Approx. 950g Sensor head : FHM-201 approx. 1.2kg, FHM-203 approx. 2.5kg, FHM-201-8 : approx. 1.7kg Fiber unit : FHV-321 approx. 1.0kg, FHV-351 approx. 1.8kg, FHV-411 approx. 2.8kg |
|
*2 3m, 15m and 20m type are also available.
*3 Ask us in details.
*PhotoMOS relay type is also available.
External dimension
External dimension
External dimension
I/O Circuit

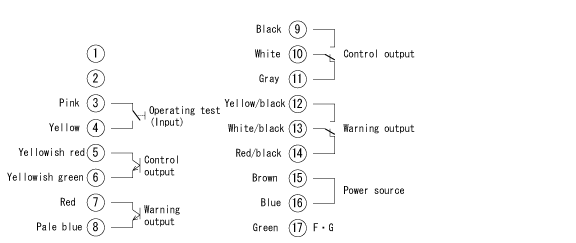

Connection
Control output(Changeover by inner switch)
| Operating mode | Light-ON | Dark-ON | |||||
| Pin No. of connector. | 5月20日 | 9-10 | 10-11 | 5-6 | 9-10 | 10-11 | |
| Power-OFF state | OFF | OPEN | CLOSE | OFF | OPEN | CLOSE | |
| Power-ON state | When light-entering | ON | CLOSE | OPEN | OFF | OPEN | CLOSE |
| When light-interrupting | OFF | OPEN | CLOSE | ON | CLOSE | OPEN | |
Warning output
| Pin No. of connector. | 7-8 | 12-13 | 13-14 | |
| Power-OFF state | OFF | OPEN | CLOSE | |
| Power-ON state | When normal | ON | CLOSE | OPEN |
| When troubled | OFF | OPEN | CLOSE | |
Characteristics Data
Steel temperature characteristics

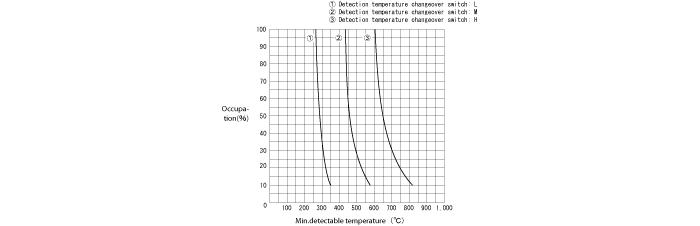

Min. detectable objects and detectable temperature characteristics
