Sensor Head and Fiber Unit for CMD/HMD
Sensor for Iron & Steel IndustryFiber Unit & Sensor Head for CMD/HMD
This is a sensor head for HMD/CMD. Non-air dust- purge hood is provided.
Sensor head such as with standing bad environment is also lined-up.
External dimension

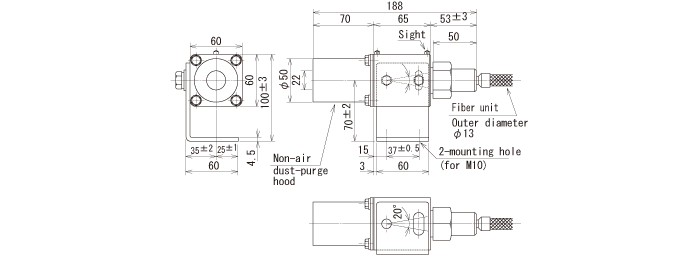

●Sensor head / FHM-201

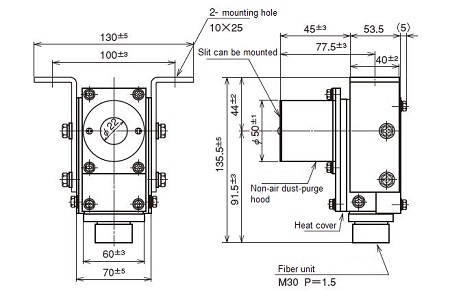

FHM-111-4

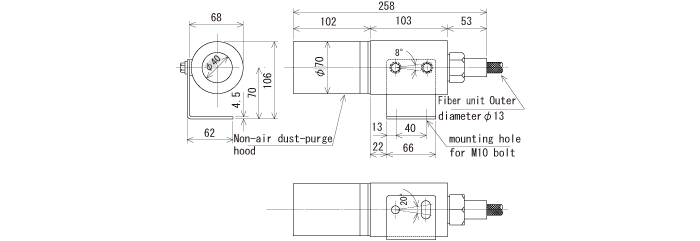

FHM-211-1

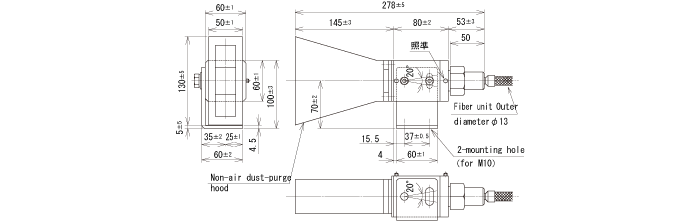

FHM-201-8WA

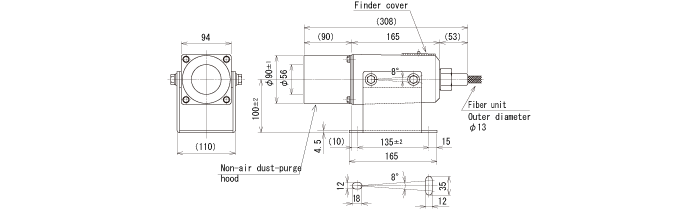

FHM-311

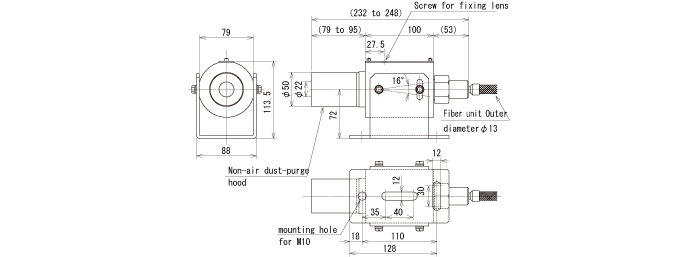

FHM-203

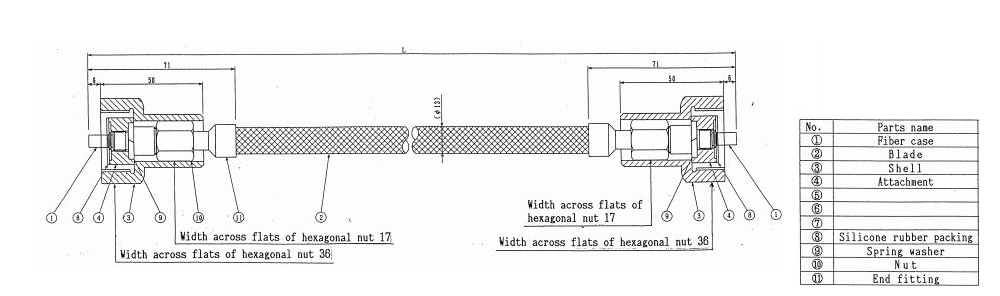

●Fiber unit / FHL series

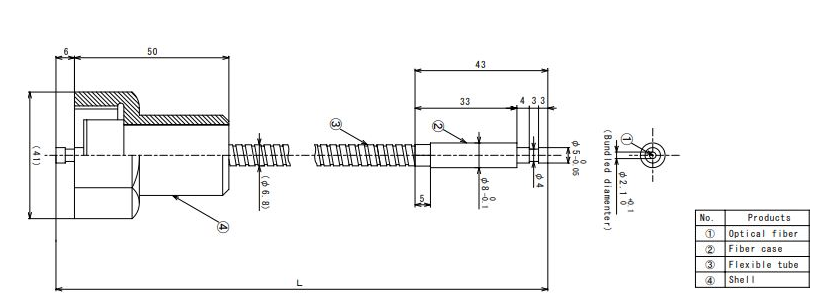

FH series

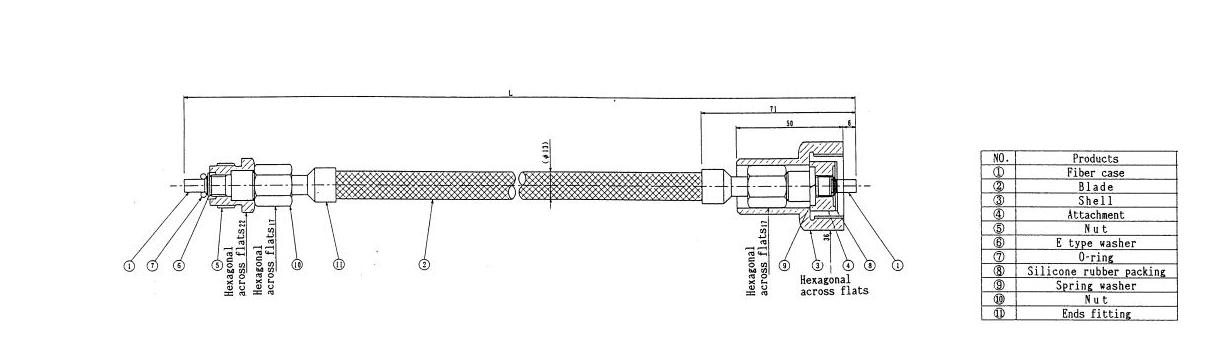

FHV series
Notes
FHL-□□□M type
FH-□□□type
FHV-□□□type
Model No. | Part No. | Cable length | Compatible Amp. |
FHL-321M | PFFL322 | 2m | PH-FDX series |
FHL-351M | PFFL352 | 5m |
FH-□□□type
Model No. | Part No. | Cable length | Compatible Amp. |
FH-321 | PFFG321 | 2m | LA-FDS series |
FH-331 | PFFG331 | 3m | |
FH-351 | PFFG351 | 5m | |
FH-411 | PFFG411 | 10m | |
FH-415 | PFFG415 | 15m | |
FH-420 | PFFG420 | 20m |
FHV-□□□type
Model No. | Part No. | Cable length | Compatible Amp. |
FHV-321 | PFFV321 | 2m | PHV series LAV series PRV series |
FHV-331 | PFFV331 | 3m | |
FHV-351 | PFFV351 | 5m | |
FHV-411 | PFFV411 | 10m | |
FHV-420 | PFFV420 | 20m |
Characteristics Data

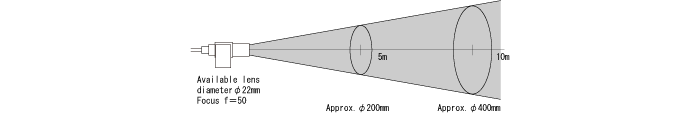

FHM-201 Spread : φ40mm×distance

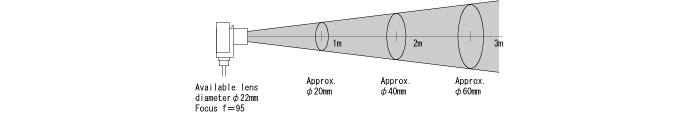

FHM-111-4 Spread : φ20mm×distance

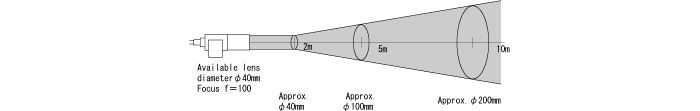

FHM-211-1 Spread : φ20mm×distance(Butφ40mm up to 2m)

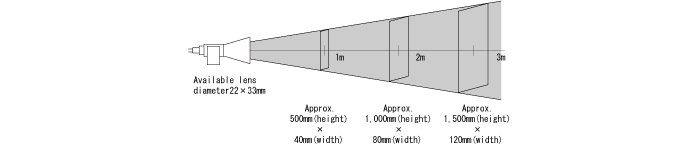

FHM-201-8WA Spread : 40mm×500mm×distance
FHM-311 Spread : φ13.3mm×distance(Butφ56mm up to 4.2m)

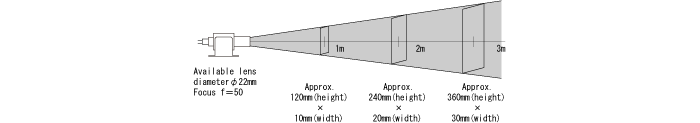

FHM-203Spread : 10mm×60mm×distance
