KAD-200
Sensor for Iron & Steel IndustryClose Crane Warning
Laser type Distance Sensor
Max. detecting distance, 20m!
2 pcs of optional distance can be set!
This equipment is composed of the amplifier unit and the reflector. It detects when crane or AGV etc. is close. It
measures the distance between the unit and the reflector with phase-difference and executes output. Trouble output ( FAULT) executes when light-emitting amount or light- receiving amount is getting lower or troubled.
Overview
Features
-> It is easy to set optional detecting distance by pushing the button for distance setting.
-> It always makes a self-diagnosis with inner circuit and it prevent the troubles beforehand.
-> It is easy to make an optical axis with 5-point level meter.
-> It always makes a self-diagnosis with inner circuit and it prevent the troubles beforehand.
-> It is easy to make an optical axis with 5-point level meter.
Specification
| Model No. | KAD-200 | |
| Power source | 85 to 264VAC (50/60Hz) | |
| Power consumption | 10VA or less when 100VAC, 15VA or less when 200VAC | |
| Detecting distance | 0.4 to 20m | |
| Detectable objects | Reflector (RRP-KAD01) | |
| Directional angle | ±2.5° | |
| Output | Control output (OUT1,2) |
1C relay(250VAC 3A, cosφ=1) Relay isn't excited and LED lights up when within setting distance |
| Trouble output (FAULT) |
1C relay(250VAC 3A, cosφ=1) Relay isn't excited and LED lights up or flickers when light-emitting/receving amount is getting lower or troubled | |
| Analog output | It output distance data/light-receiving amount*1 with analog value. (Don't use it except for adjustment) | |
| Absolute precision/ repeatability | ±400mm, ±200mm | |
| Resolution | 80mm | |
| Hysteresis | 500mm | |
| Response time | 50msec or less*2 | |
| Connection | M4 screw terminal(15 pins) | |
| Ambient illuminance | 10,000lx or less(Halogen and mercury light), 6,000lx(incandescent lamp: Max.illuminance) | |
| Ambient temperature/humidity | -10 degrees C to +55 degrees C, 85%RH or less(not condensing, not icing) | |
| Vibration resistance | Double amplitude 1.5mm, 10 to 55Hz, each 2 hour in X, Y and Z directions | |
| Impact resistance | 490m/s2(50G) each 10 time for X, Y and Z direction | |
| Case materials | Steel plate(SPCC) | |
| Impact resistance | Sensor: Approx.3kg, Reflector: Approx.4.5kg | |
*2 Don't operate during 2sec after putting power source on.
External dimension
Sensor

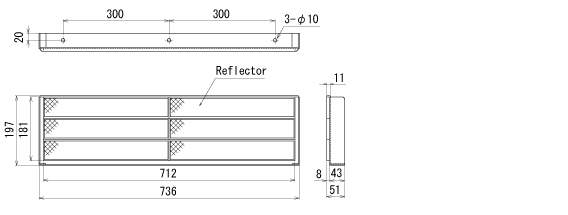

Reflector
I/O Circuit

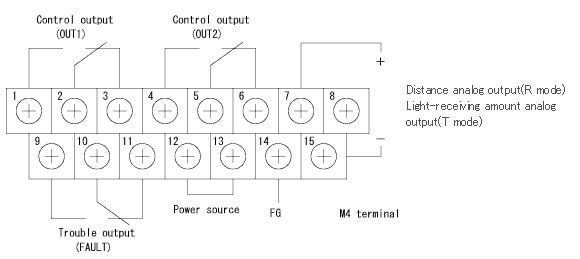

External connection
Control output(OUT1,OUT2)
Control output(OUT1,OUT2)
Trouble output(FAULT)
Control output(OUT1,OUT2)
| Terminal No. | 1-2 | 2-3 | 4-5 | 5-6 | |
| Power-OFF state | OPEN | CLOSE | OPEN | CLOSE | |
| Power-ON state |
Within setting distance | OPEN | CLOSE | OPEN | CLOSE |
| Over setting distance | CLOSE | OPEN | CLOSE | OPEN | |
Trouble output(FAULT)
| Terminal No. | 9-10 | 10-11 | |
| Power-OFF state | OPEN | CLOSE | |
| Power-ON state |
When normal | CLOSE | OPEN |
| When troubled | OPEN | CLOSE | |
