KAD-300

Sensor for Iron & Steel IndustryClose Crane Warning

Optical type Distance Sensor
Max. detecting distance, 30m!
3 pcs of optional distance can be set!
This equipment is composed of the amplifier unit and the reflector. It detects when crane or AGV etc . is close. It measures the distance between the unit and the reflector with phase-difference and executes output. Trouble output ( FAULT) executes when light-emitting amount or light- receiving amount is getting lower or troubled.

Overview
Specification
External dimension
I/O Circuit
Downloads

Overview

Features

-> It is easy to set optional detecting distance by pushing the button for distance setting.
-> It always makes a self-diagnosis with inner circuit and it prevent the troubles beforehand.
-> It is easy to make an optical axis with 5-point level meter.*

* KAD-200(20m type) is lined-up, too.

Specification

Model No.		KAD-300
Power source		85 to 264VAC (50/60Hz)
Power consumption		10VA or less when 100VAC, 15VA or less when 200VAC
Detecting distance		1 to 30m
Detectable objects		Reflector(RRP-KAD01)
Directional angle		±2.5°
Output	Control output (OUT1,2,3)	1C relay(250VAC 3A, cosφ=1) Relay isn't excited and LED lights up when within setting distance
	Trouble output (FAULT)	1C relay(250VAC 3A, cosφ=1) Relay isn't excited and LED lights up or flickers when light-emitting/receving amount is getting lower or troubled
Absolute precision/Repeatability		±800mm, ±400mm
Hysteresis		500mm
Resolution		160mm
Response time		50msec or less^*1
Connection		M4 screw terminal(15 pins)
Ambient illuminance		10,000lx or less(Halogen and mercury light), 6,000lx(incandescent lamp: Max.illuminance)
Ambient temperature/humidity		-10 to +55 ℃, 85%RH or less(not condensing, not icing)
Vibration resistance		Double amplitude 1.5mm, 10 to 55Hz, each 2 hour for X, Y and Z direction
Impact resistance		490m/s²(50G), each 10 time for X, Y and Z direction
Case materials		Steel plate(SPCC)
Weight		Sensor: Approx. 3kg, Reflector: Approx. 4.5kg

*Don't operate during 2sec after putting power source on.

External dimension

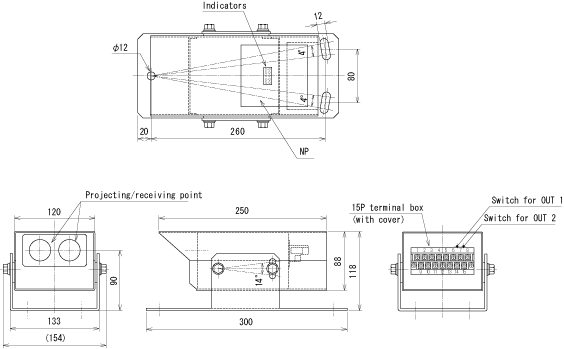

Sensor

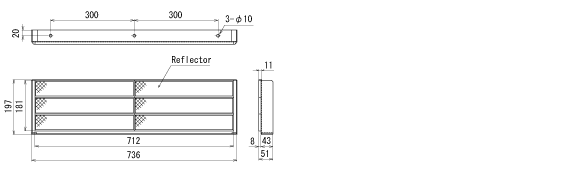

Reflector(RRP-KAD01)

I/O Circuit

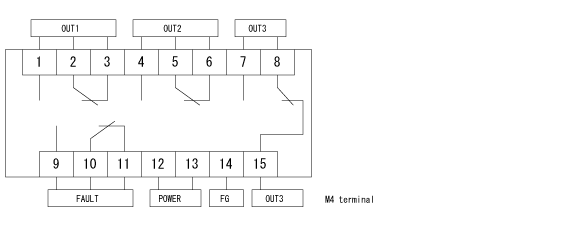

External connection

Output

Control output(OUT 1, 2 and 3)

Terminal No.		1―2	2―3	4―5	5―6	7―8	8―15
Power-OFF state		OPEN	CLOSE	OPEN	CLOSE	OPEN	CLOSE
Power-ON state	Within setting distance	OPEN	CLOSE	OPEN	CLOSE	OPEN	CLOSE
Power-ON state	Over setting distance	CLOSE	OPEN	CLOSE	OPEN	CLOSE	OPEN

Trouble output(FAULT)

Terminal No.		9―10	10―11
Power-OFF state		OPEN	CLOSE
Power-ON state	When normal	CLOSE	OPEN
Power-ON state	When troubled	OPEN	CLOSE
