BRS
Optical Data Transmission DeviceOptical Remote Controller
Easy-to-see display with small size!
low-profile and backlight!!
Overview
Features
-> Small size/low-profile/pocket-size.
-> 15 points and 4 points type are lined-up.
-> 999 kind of ID can be set and speed dial can be made.
-> Durability is much improved because sheet switch is applied instead of mechanical switch.
-> 15 points and 4 points type are lined-up.
-> 999 kind of ID can be set and speed dial can be made.
-> Durability is much improved because sheet switch is applied instead of mechanical switch.
Specification
Transmitter
Receiver
*Output only when ID No. from transmitter would be coincident with set.
| Model No. | BRS-G24T | BRS-G2CT |
| Power source | Alkaline cell(4 pcs) | |
| Battery life | 16 hours under continuous use(when not using backlight) | |
| Transmission distance | 10m | |
| Directional angle | Full angle 30° | |
| Display | LCD 3 digits, battery, transmission(with backlight) | |
| Key numbers | Numerical key:4 points, setting key:5 points, built-in electronic buzzer | Numerical key:15 points, setting key:3 points, built-in electronic buzzer |
| ID No. setting | Max. 999 kinds(it can be set as your option) | |
| Setting functions | 1. ID No. setting 2. Automatic power-OFF time 3. Backlight OFF time 4. Buzzer sound 5. Double-press available 6. ID No.speed dial registration 7. Reset(return to initial setting) |
|
| Element | Infrared LED(870nm) | |
| Modulating method | Pulse-position modulation(455kHz) | |
| Error detection | Twice coincident system | |
| Ambient temperature | 0 to +40 degrees C | |
| Ambient humidity | 45 to 85%RH, not icing, not condensing | |
| Vibration resistance | Double amplitude 1.5mm, 10 to 55Hz, each 2 hour in X, Y and Z direction | |
| Impact resistance | 490m/s2, each 6 time in X, Y and Z directions | |
| Protective structure | Keys surface : IP64(IEC strandard), the other : IP40(IEC standard) | |
| Case | Polycarbonate | |
| Weight | Approx. 110g(including battery) | |
Receiver
| Model No. | BRS-G24R | BRS-H24R | BRS-G2CR | BRS-H2CR |
| Direction | Head-ON | Front-ON | Head-ON | Front-ON |
| Power source | 24VDC±10% | |||
| Current consumption | 50mA or less | |||
| Directional angle | Right/left : full angle 90°, up/down : full angle 40° | |||
| ID No. setting | 999 kinds, Turning counterclockwise : write-in mode(from transmitter), Turning clockwise : operation mode | |||
| Output* | Data output : 4 points, strobe 1 points | Data output : 15 points, strobe 1 points | ||
| NPN open-collector output (30DVC, 50mA or less, Residual voltage 1.8V or less | ||||
| Output holding time | 100msec or more | |||
| Receiving system | Pulse position modulation(455KHz), Twice coincident system | |||
| Indication lamp | Output lamp : data output (OUT1 – 4) 4 points, strobe output(STB) 1 point | Output lamp : data output (OUT1 – 15) 15 points, strobe output(STB) 1 point | ||
| Receiving lamp(RCV) : 1 point, write-in lamp(WRT) : 1 point, power lamp(POW) : 1 point | ||||
| Connection | Cable(connector at the end) | |||
| Ambient illuminance | 4,000lx(Fluorescent/mercury lamp) | |||
| Ambient temperature | -10 to +50 degrees C | |||
| Ambient humidity | 45 to 85%RH, not icing, not condensing | |||
| Environment | No corrosive gas | |||
| Insulation resistance | 10MΩ(500VDC megger) | |||
| Noise resistance | Conformity standard IEC(EN) 61000-4-2/-3/-4/-6/-8 | |||
| Vibration resistance | Double amplitude 1.5mm, 10 to 55Hz, each 2 hour in X, Y and Z direction | |||
| Impact resistance | 490m/s2, each 6 time in X, Y and Z directions | |||
| Protective structure | IP64(IEC standard) | |||
| Case materials | Polycarbonate | |||
| Weight | Approx. 240g | |||
External dimension

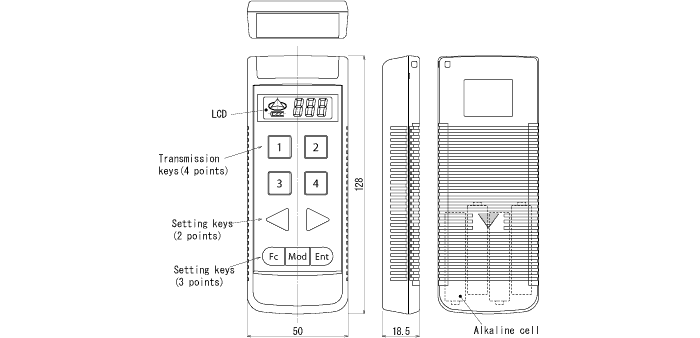

Transmitter(4 points)

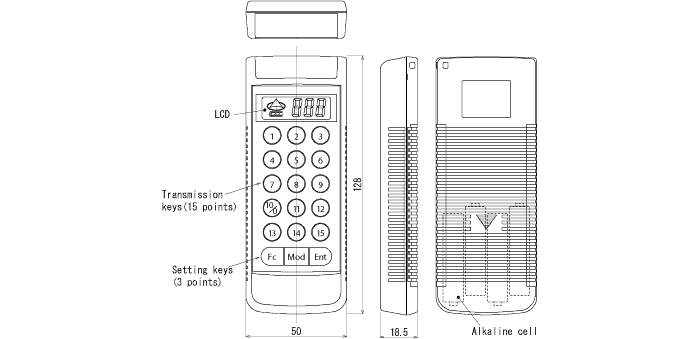

Transmitter(15 points)

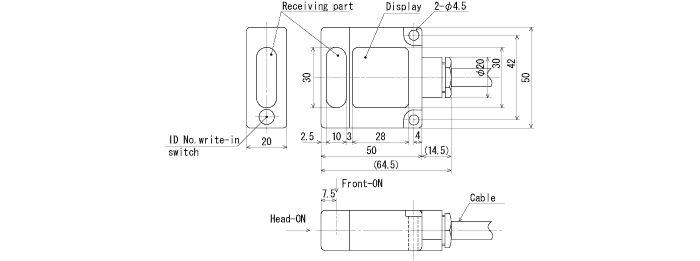

Receiver
I/O Circuit
Receiver with 4 points output
NPN open-collector output
30VDC, 50mA or less, residual voltage 1.8V or less
30VDC, 50mA or less, residual voltage 1.8V or less
Receiver with 15 points output
NPN open-collector output
30VDC, 50mA or less, residual voltage 1.8V or less

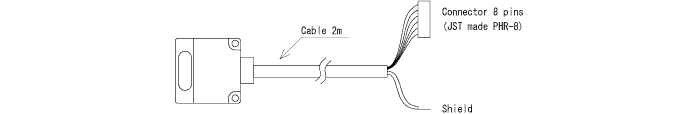

Connection /4 points output
| Colors | Pin No. | Functions |
| Red | 1 | OUT1 |
| Yellow | 2 | OUT2 |
| Green | 3 | OUT3 |
| Black | 4 | OUT4 |
| White | 5 | STB* |
| Brown | 6 | +VIN |
| Blue | 7 | -VIN |
| Shield | Shield | |
Note) Don't use attached connector as relay terminal.

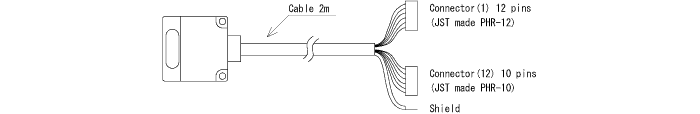

Connection /15 points output
Receiver with 15 points output
*Turn ON when data would be fixed.
Note) Don't use attached connector as relay terminal.
| Colors | Pin No. | Functions | Colors | Pin No. | Functions | |
| Brown | CN1-5 | OUT9 | Orange/black | CN1-10 | OUT3 | |
| Red | CN1-7 | OUT10 | Yellow/black | CN1-12 | OUT4 | |
| Orange | CN1-9 | OUT11 | Green/black | CN2-2 | OUT5 | |
| Yellow | CN1-11 | OUT12 | Blue/black | CN2-4 | OUT6 | |
| Green | CN2-1 | OUT13 | Purple/black | CN2-6 | OUT7 | |
| Blue | CN2-3 | OUT14 | Gray/black | CN2-8 | OUT8 | |
| Purple | CN2-5 | OUT15 | White/black | CN1-4 | COM | |
| Gray | CN2-7 | STB* | Pale blue | CN1-1 | -VIN | |
| White | CN1-3 | - | Pink/black | CN2-9 | +VIN | |
| Pale blue/black | CN2-10 | -VIN | ||||
| Pink | CN1-2 | - | Shield | Shield | ||
| Brown/black | CN1-6 | OUT1 | ||||
| Red/black | CN1-8 | OUT2 | ||||
Note) Don't use attached connector as relay terminal.
