Products Detail
BRC-G

BRC-G

Optical Data Transmission DeviceOptical Remote Controller

Stable operation and high reliability against disturbance noise

Overview

Features

-> This is a remote controller with high reliability.
-> Operation and handling are improved.
-> 4-point type and 12-point type are lined up and special type is also available.

Specification

Specifications(Transmitter)
Model No. BRC-G24T BRC-G44T
Kind 4-point transmitter
Power source Alkaline cell 4 pcs
Battery life : approx.9 hours under continuous use
Power switch and automatic power-off function are provided(It will be off if no key input for 30sec.)
Projecting element Infra-red LED
Directional angle Full angle 30°
Transmission distance 10m 20m
Transmission point 4 points
Transmission method Transmitted by transmission key(1 to 4), Double key-in is also available by changeover switch
Transmission check Electronic buzzer(Ringing during transmitting)
Case ABS resin(Handling part : Polyester film)
Weight Approx. 120g

Specifications(Transmitter)
Model No. BRC-G2BT BRC-G4BT
Kind 12-point transmitter
Power source Alkaline cell 4 pcs
Battery life : approx.9 hours under continuous use
Power switch and automatic power-off function are provided(It will be off if no key input for 30sec.)
Projecting element Infra-red LED
Directional angle Full angle 30°
Transmission distance 10m 20m
Transmission point 12 points
Transmission method Transmitted by transmission key(1 to 12), Double key-in is also available by changeover switch
Transmission check LED(Lighting during transmitting)
Case ABS resin(Handling part : Polyester film)
Weight Approx. 200g

Specifications(Receiver)
Model No. BRC-G2AR BRC-G2BR BRC-H2AR BRC-H2BR
Kinds 4 points 12 points 4 points 12 points
HEAD-ON FRONT-ON
Power source 24VDC(±20%, ripple 10% or less)
Reception element Photo-diode
Directional angle 50°for vertical and 90°for horizontal(Full angle)
Reception method FSK modulation, output is effective when reverse code corresponds
F number registration Set by transmitter
Output Data output : 4 pcs(BRC-G2AR, BRC-H2AR), 12 pcs(BRC-G2BR, BRC-H2BR),
strobe : 1 pcs, photo-coupler isolation, open-collector output(Max.35V, 50mA, residual voltage Max. 1.5V)
Note) It executes only when registered F No. code would coincide receiving F No.code.
Connection Cable with connector(2m long)
Ambient illuminance 10,000lx or less(Fluorescent lamp, mercury lamp)
Ambient temperature -10 degrees C to +50 degrees C
Ambient humidity 45 to 85%RH
Protective structure IP66(IEC standard)
Note) While working automatic power-off function and under automatically power source would be off, even if power switch is repeated with ON→OFF→ON, there is no display on LCD.
In case that, press any keys(1 to 4) after putting power source on.
Turn to the normal mode and it is possible to transmit.

External dimension

Receiver / Front-ON type

Receiver / Front-ON type

Receiver / Head-ON type

Receiver / Head-ON type
※Use it when registering F No.

Transmitter / 4-point type

Transmitter / 4-point type

Transmitter / 12-point type

Transmitter / 12-point type

I/O Circuit

Output circuit

Output circuit
DC35V 50mA Residual voltage1.5V

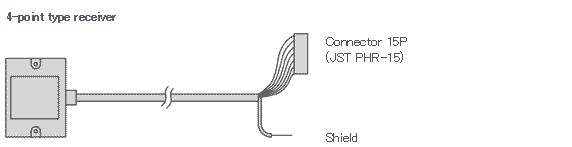

Connection

Connection
Colors Pin No. Functions
Black 1 Power 0V
Brown 2 Power +V
Red 3 OUT4
Orange 4 OUT3
White/yellow 5 OUT2
Yellow 6 OUT1
White/blue 7 -
Green 8 -
Blue 9 -
Purple 10 -
Gray 11 COM
White 12 Strobe
Yellow/green 13 -
Yellow/red 14 -
Yellow/black 15 -
Shield Shield
Note) Don`t use attached connector as relay terminal.

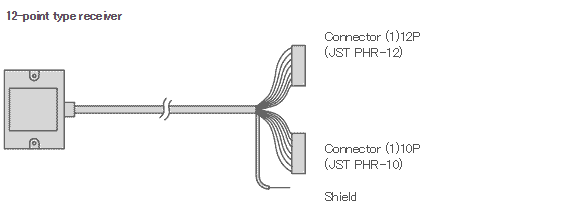

Connection

Connection
Connector (1)   Connector (2)
Colors Pin No. Functions Colors Pin No. Functions
Pale blue 1 Power 0V Green 1 Strobe*
Pink 2 Power +V Green/black 2 OUT12
White 3 OUT8 Blue 3 OUT11
White/black 4 OUT7 Blue/black 4 OUT10
Brown 5 OUT6 Purple 5 OUT9
Brown/black 6 OUT5 Purple/black 6 -
Red 7 OUT4 Gray 7 -
Red/black 8 OUT3 Gray/black 8 -
Orange 9 OUT2 Pink/black 9 -
Orange/black 10 OUT1 Pale blue/black 10 -
Yellow 11 COM Shield Shield
Yellow/black 12 Strobe*
* It is short-circuited inside. ON when data would be fixed.
Note) Don't use attached connector as relay terminal.
