UAM-02LP-T302
Scanning RangefinderSafety Laser Scanner
This product is no longer in production or sales.
World’s smallest Safety Laser Scanner Compact, lightweight and easy to use. From low mounting in AGVs to vertical mounting for access protection, the compact body fits a wide range of applications Conformity Standards IEC61496-1/3 : Type3 IEC61508 : SIL2 ISO13849-1 : PL d Category3
Overview
Features
-> Wider protection with small size and reliable detection even for the black objects.
-> Stores 16 detection patterns each having 1 protection and 2 warning zones.
-> Application software features simple GUI, device configuration by monitoring the real time data and the beginner’s mode for step by step configuration.
-> Features muting function to easily configure complex zones for goods transfer at entry and exit points.
-> Features reference monitoring function to detect displacement from the original position and prevents unauthorized access through gaps.
-> Stores 16 detection patterns each having 1 protection and 2 warning zones.
-> Application software features simple GUI, device configuration by monitoring the real time data and the beginner’s mode for step by step configuration.
-> Features muting function to easily configure complex zones for goods transfer at entry and exit points.
-> Features reference monitoring function to detect displacement from the original position and prevents unauthorized access through gaps.
Model
Muting Function/Configuration
Easy to configure complex muting zones.

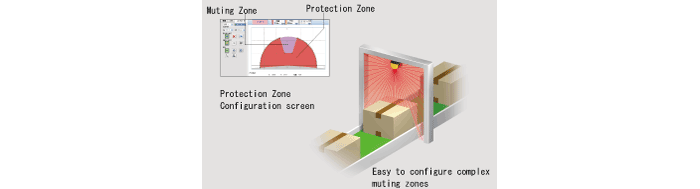

Muting function allows parts of the protection zone to be disabled for transferring goods at entry and exit points. It is possible to configure complex muting zones that are not possible with light curtains.
Muting function allows parts of the protection zone to be disabled for transferring goods at entry and exit points. It is possible to configure complex muting zones that are not possible with light curtains.
Reference Feature
Displacement detection from the original position.

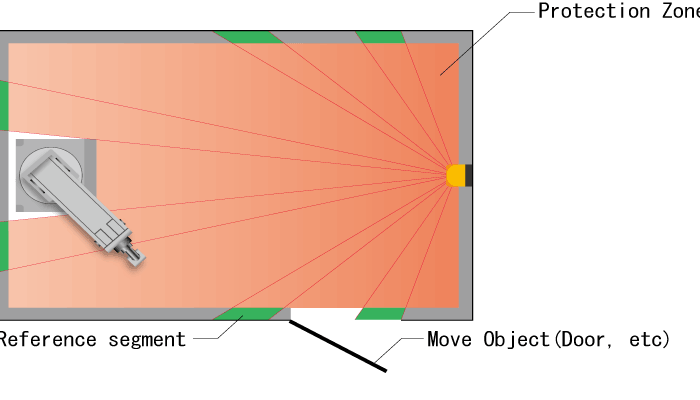

If the reference segments are configured on moveable objects, such as doors, OSSD switches to OFF-state when the position of the object is changed.
If the reference segments are configured on moveable objects, such as doors, OSSD switches to OFF-state when the position of the object is changed.
Specification
| Model | UAM-02LP-T302 | |
| Detection property | Protection Range | Max. 2m |
| Warning Range | Max. 10m (Non-safety) | |
| Distance tolerance*1 | +100mm | |
| Detection capability | From Black-Reflector sheet(1.8%) to Retro-Reflector Sheet | |
| Speed 1.6m/s | ||
| Detection angle | 190° | |
| Min Detectable width | φ30mm(Max. Distance : 1.0m) | |
| φ50mm(Max. Distance : 1.5 m) | ||
| φ70mm(Max. Distance : 2.0 m) | ||
| Scan Frequency | 30ms(Rotating at 2,000 rpm) | |
| Area pattern | 16 patterns | |
| Response time | OFF : 60 to 510ms | |
| ON : 270 to 510ms | ||
| Optics | Element | Pulsed Laser Diode |
| Wavelength | 905nm | |
| Safety class | Laser Class 1 | |
| Safety type | Type 3 (IEC61496-1,IEC61496-3) | |
| Functional | SIL 2(Type B,HFT=1) (IEC61508) | |
| Safety | ||
| PFHd | 7.5×10-8(T1=20year) | |
| Housing | Size | 90mm(W),99.8mm(D),97mm(H) |
| Weight | Approx. 1.0kg | |
| Protection | IP65 | |
| Material | Body : Aluminum / Optical Window : Polycarbonate | |
| Cable | Flying lead cable and water proof connector / Cable300mm /M16-19p | |
| Power supply | DC 24 V ±10% : Power supply from converter DC 24 V -30%/+20% : Power supply from battery |
|
| Cable length | Length 20m AWG 22, 26, 28 | |
| Power consumption | Normal(without load) | 11W |
| Max.(without load) | 19W | |
| Max.(with load) | 58W | |
| Output types | OSSD1/2(Safety related) | Output type (High side SW) Output current (Max : 500 mA) Leak current(Max : 1 mA) Wire(Length : 20 m AWG 26) Load(L/R=25ms C=1μF) |
| WARNING1(Non-safety) | Output types (PNP Transistor output) Output current(Max : 100 mA) Leak current (Max : 1 mA) Wire (Length : 20 m AWG 28) |
|
| WARNING2 / ERR / MUT_OUT(Non-safety) | Output types (PNP Transistor output) Output current(Max : 100 mA) Leak current (Max : 1 mA) Wire (Length : 20 m AWG 28) |
|
| READY or RES_REQ(Non-safety) | Output types (PNP Transistor output) Output current(Max : 100 mA) Leak current (Max : 1 mA) Wire (Length : 20 m AWG 28) |
|
| Input | Numbers of inputs | 16 patterns switching (4 inputs×2 channels) EDM/RESET/MUTING1/MUTING2/OVERRIDE(1 input×1 channel) |
| Input Impedance | 4.7KΩ | |
| Cable | Length 20 m AWG 28 | |
| Interface | Configuration | USB2.0 (USB mini B type connector ) |
| Environmental resistance | Temperature | -10 to +55degress C |
| Storage Temperature | -25 to +70degress C | |
| Humidity | 95% RH | |
| Storage Humidity | No freezing and condensation | |
| Surrounding Illumination*2 | Less than 3000 lx | |
| Vibration | Frequency range : 10~55 Hz Sweep rate : 1octave/min | |
| Amplitude : 0.35 mm ±0.05 mm | ||
| Shock resistance | Acceleration : 98m/S2(10G) Pulse duration : 16 ms | |
*2 When the light sources located at ?5°from the detection plane of UAM.

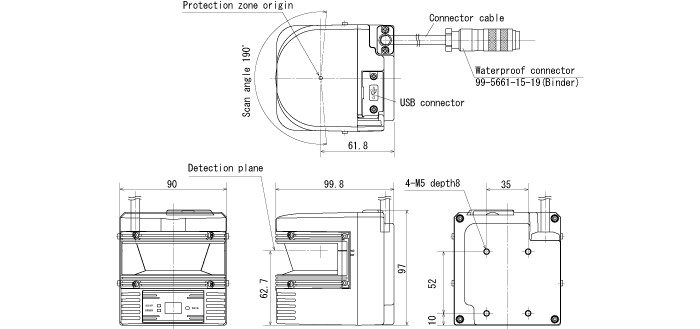

External dimension
Sensor

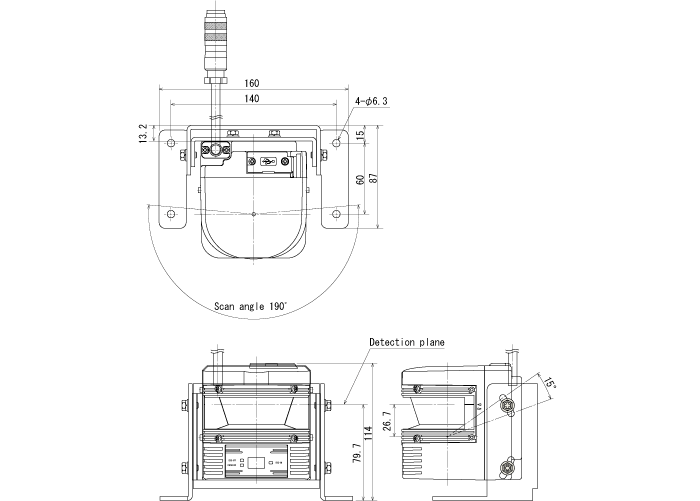

L-shape mounting bracket

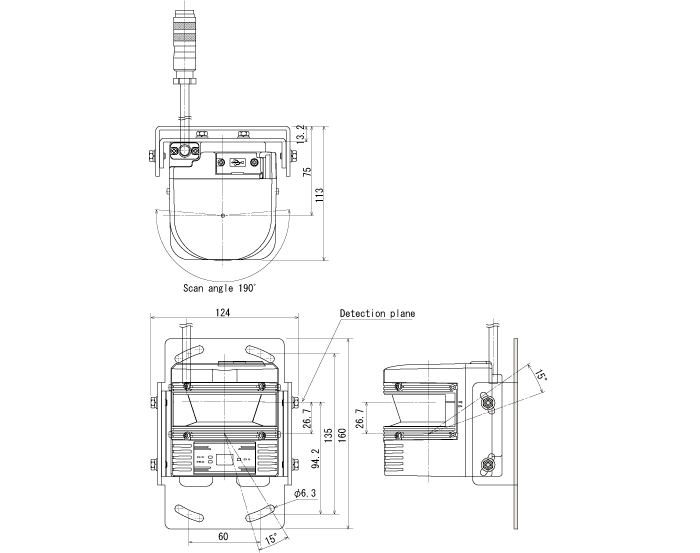

Vertical mounting bracket
I/O Circuit

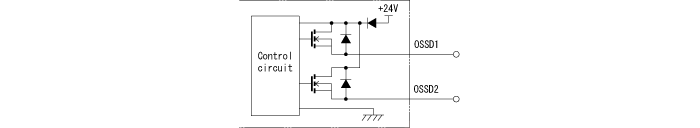

OSSD output circuit
OSSD outputs are source output type.

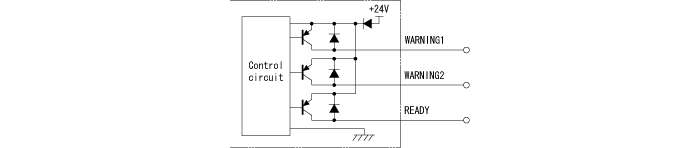

Other Output circuit
WARNING1,WARNING2,READY outputs are PNP type.

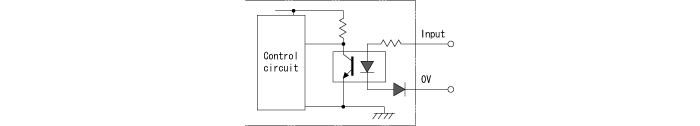

Input circuit
Applicable for area inputs (IN_A~IN_D and IN_A(_)~IN_D(_)) , EDM,RESET,MUTING1,MUTING2 and OVERRIDE.
Wiring
| Colour | Signal | Function | Description | AWG |
| Brown | +24V DC | Power | Power : DC 24V | 22 |
| Blue | 0V DC | Power | Power : 0V | 22 |
| Red | OSSD1 1 | Output | Protection zone output 1 | 26 |
| Yellow | OSSD 2 | Output | Protection zone output 2 | 26 |
| Purple | IN_A | Input | Area Switching Input A | 28 |
| Gray | IN_B | Input | Area Switching Input B | 28 |
| White | IN_C | Input | Area Switching Input C | 28 |
| Pink | IN_D/ | Input | Area Switching Input D/ | 28 |
| MUTING1 | Muting input１ | |||
| Purple/Black | IN_¬A | Input | Area Switching Input ¬A | 28 |
| Gray/Black | IN_¬B | Input | Area Switching Input ¬B | 28 |
| White/Black | IN_¬C | Input | Area Switching Input ¬C | 28 |
| Pink/Black | IN_¬D/ | Input | Area Switching Input ¬D/ | 28 |
| MUTING2 | Muting input 2 | |||
| Green | EDM | Input | External device monitoring | 28 |
| Red/Black | WARNING1 | Output | Warning zone Output 1 | 28 |
| Yellow/Black | WARNING2/ | Output | WARNING2 : Warning zone output 2 | 28 |
| ERR/ | ERR : OFF When diagnostic error detected | |||
| MUT_OUT | MUT_OUT : Muting state output | |||
| Orange | READY/ | Output | READY : ON during Normal operation | 28 |
| RES_REQ | RES_REQ : ON When external reset is needed | |||
| Green/Black | RESET | Input | Reset input | 28 |
| Orange/Black | OVERRIDE | Input | Override input | 28 |
| Shield wire | FG | — | Frame ground | — |
