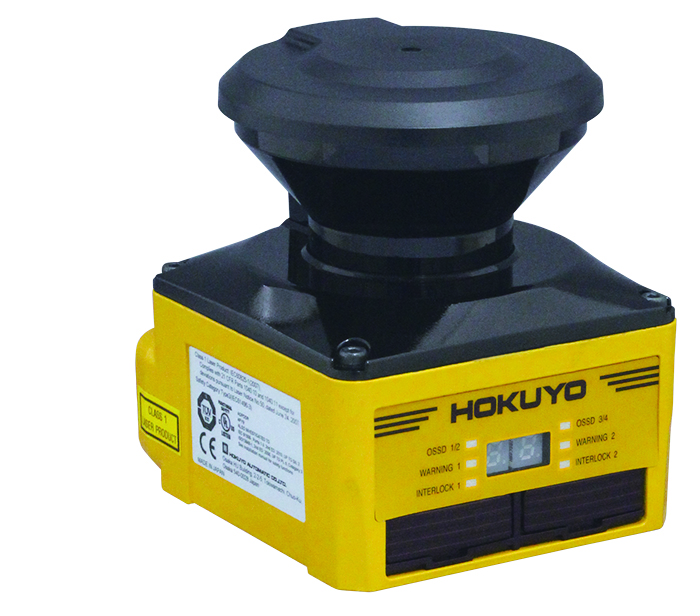

UAM-05LPA-T301/T301C
Scanning RangefinderSafety Laser Scanner
Safety laser scanner with 5m and 270°protection range.
It is compact, highly functional, and easy to use, and can improve the efficiency and operation rate of factories and logistics by providing safety measures for AGVs, robots, machinery, etc.
It can replace protective fences, light curtains and mat switches.
Safety standard certified.
*Improved environmental resistance compared to conventional UAM.
Overview
Protection over wide range!

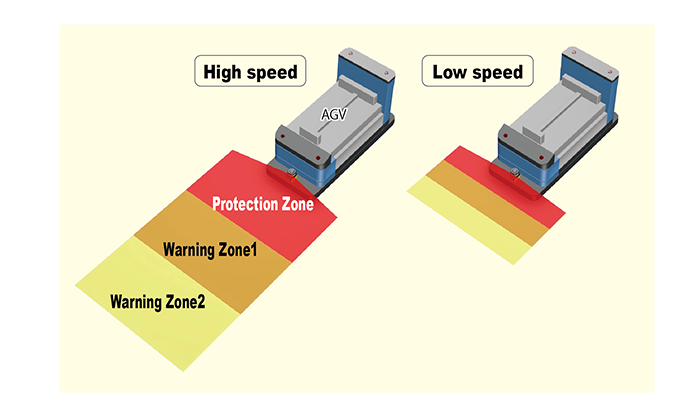

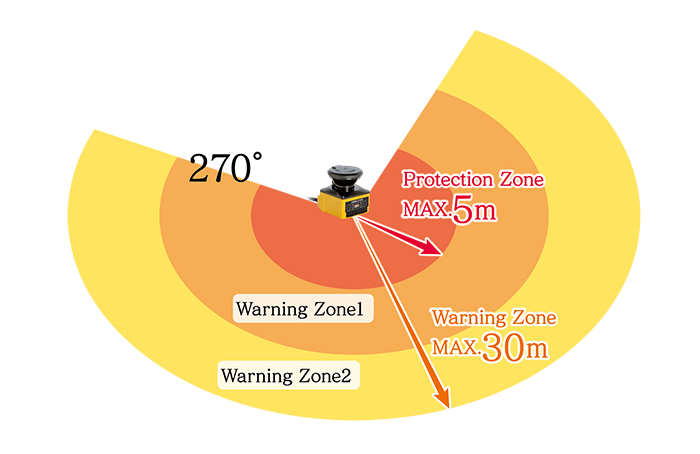

5m protection zone and 30m warning zone are suitable for various applications.
Improved resistance to dirt!
Even if optical window becomes dirty due to dust, unexpected machine stoppages are avoided.

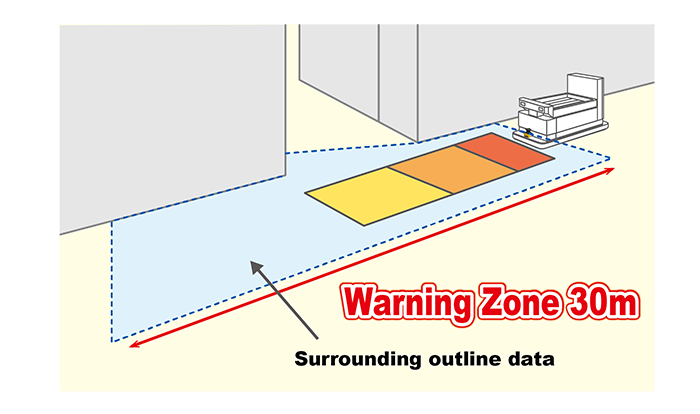

Extended warning area to 30m!
Warning area can be set up to 30m. (Conventional UAM-05LP-T301/T301C: 20m)
Improved close-range accuracy!
Improved mapping accuracy. More accurate docking with AGV charging equipment will be possible.
Added more encoder inputs!
Conventional UAM had 2 inputs, but UAM-05LPA has 4 inputs which makes it possible to control the area pattern not only by speed monitoring but also by steering angle and direction.
Improved noise resistance!

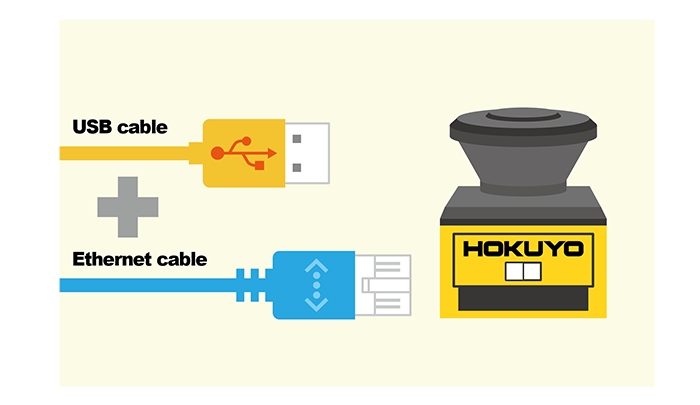

Can be set using USB or Ethernet!
In addition to the USB port and SD Card slot, it is now possible to configure the scanner using its Ethernet port.
The configuration application (UAM Project Designer) is updated to configure the scanner whenever it is accessible through the network, this feature unlocks configuration possibilities like remote access though WiFi when the device is reachable from the AGV network for example.
The configuration application (UAM Project Designer) is updated to configure the scanner whenever it is accessible through the network, this feature unlocks configuration possibilities like remote access though WiFi when the device is reachable from the AGV network for example.
Model
* Sensor unit
| Model Number | Code Number | Cable type | Notes |
| UAM-05LPA-T301 | UUAM019 | Flying cable 3m | |
| UAM-05LPA-T301C | UUAM020 | Cable 0.3m with waterproof connector |
Connector cable is required. *Please see the Extension cable line-up in the option list. |
* Extension cable for connector type UAM-05LP-T301C・UAM-05LPA-T301C (Option)
| Model Number | Code Number | Length | Notes |
| UAM-5C02C | UZ00081 | 2m | UAM requires 1 cable each *Only for T301C |
| UAM-5C05C | UZ00082 | 5m | |
| UAM-5C10C | UZ00083 | 10m | |
| UAM-5C20C | UZ00084 | 20m |
* USB cable (Option)
| Model Number | Code Number | Length | Notes |
| UAM-MUSB | UZ00065 | 1m | For Area configuration |
* Ethernet cable (Option)
| Model Number | Code Number | Length | Notes |
| UAM-ENET | UZ00062 | 3m | Necessary for distance data output |
* Bracket (Option)
| Model Number | Code Number | Mounting position | Notes |
| UAM-BK03 | UZ00059 | Base mounting | The vertical installation angle of the UAM can be changed. |
| UAM-BK04 | UZ00060 | Rear mounting | The vertical and horizontal mounting angles of the UAM can be changed. |
| UAM-BK05 | UZ00061 | Cover bracket | Protects the optical window in combination with the bottom or rear mounting bracket. |
| UAM-BK06 | UZ00103 | Protection cover | Combine with bottom or rear mounting brackets to protect the entire surface. |
* Optical window (Option)
| Model Number | Code Number | Notes | |
| UAM-W004 | UZ00174 | For replacement optical window when damaged | |
* Area configuration software
| Model Number | Code Number | Notes | |
| ― | ― | Please download. Application software for configuring UAM functions and areas. |
|

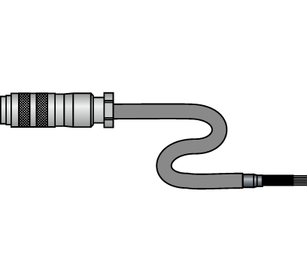

Connector cable
*For UAM-05LP-T301C・UAM-05LPA-T301C

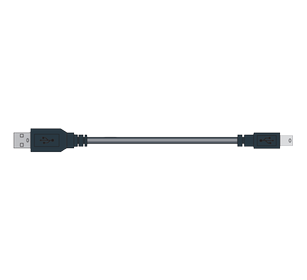

USB cable
UAM-MUSB

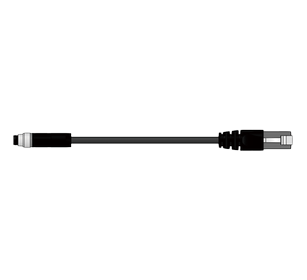

Ethernet cable
UAM-ENET

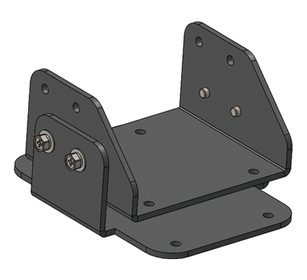

Base mounting bracket
UAM-BK03

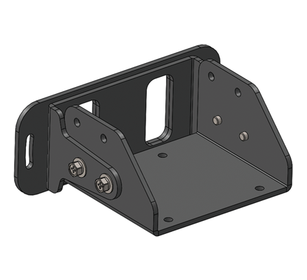

Rear mounting bracket
UAM-BK04

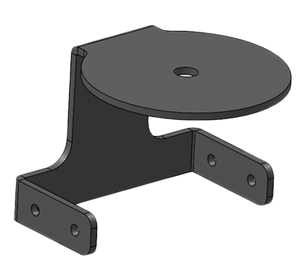

Cover bracket
UAM-BK05

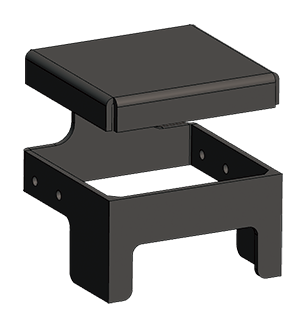

Protection cover
UAM-BK06

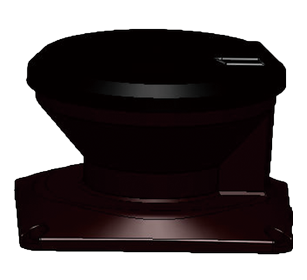

Optical window
UAM-W004
Specification
| Subject | Specifications | ||
| Model | UAM-05LPA-T301 | UAM-05LPA-T301C | |
| Detection Property | Protection Range | Max: 5m | |
| Warning Range | Max: 30m (Non-safety)*1 | ||
| Distance Tolerance*2 | +100mm | ||
| Detection Capability | From Black-Reflector sheet(1.8%) to Retro- Reflector Sheet | ||
| Detection Range | 270° | ||
| Minimum Detectable Width | φ30mm (Max : 1.8m) | ||
| φ40mm (Max : 2.5m) | |||
| φ50mm (Max : 3.0m) | |||
| φ70mm/150mm (Max : 5.0m) | |||
| Scan Frequency | 30ms (Rotational Speed 2000rpm) | ||
| Area Pattern | MAX 32 patterns (Pair input mode)*3 MAX 128 patterns (Fixed input mode / Encoder mode)*7 |
||
| Response Time | OFF : 60ms ～ 2010ms | ||
| ON : 270ms ～ 2010ms | |||
| Optics | Element | Pulsed Laser Diode | |
| Wavelength | 905nm | ||
| Safety class | Laser Class 1 | ||
| Type | Type 3 (IEC61496-1,IEC61496-3) | ||
| Functional Safety | SIL 2(Type B, HFT=1) (IEC61508) | ||
| PFHd | 8.1×10-8 (T1=20year) : When master slave function is not in use | ||
| 1.6×10-7 (T1=20year) : When master slave function is in use | |||
| Housing | Size | 80.0mm (W) , 80.0mm (D) , 95.0mm (H) (without cable) | |
| Weight | 0.8kg | ||
| Protection | IP65 | ||
| Case Material | Body : Aluminum / Optical Window : Polycarbonate | ||
| Conenection Cable | Flying lead cable : 3m | Cable with waterproof connector : 0.3m | |
| Power supply | DC 24V ±10% : when operation using converter power supply | ||
| DC 24V -30%/+20% : when operation using battery | |||
| Supply Current | Normal (without load) | 6W | |
| Max.(with load) | 50W | ||
| Output | OSSD1/2 (Safety) | Output type (High side SW) | |
| Output current (Max : 500mA)*4 | |||
| Leak current (Max : 1mA) | |||
| AWG 26 | |||
| Load tolerance (L/R=25ms, C=1μF) | |||
| OSSD3/4(Safety) WARNING 1/2 (Non-Safety) |
Output types (High side SW) Output current : (Max : 250mA)*4 Leak current (Max : 1mA) AWG 28 Load tolerance (L/R=25ms, C=1μF) |
||
| RES_REQ 1 RES_REQ 2 MUT_OUT 1 MUT_OUT 2 |
Output types (PNP Transistor) Output current : (Max : 200mA) Leak current (Max : 1mA) AWG 28 |
||
| Input | Area pattern (5 Inputs × 2 Channels) EDM1/EDM2 MUTING1/MUTING2 MUTING3/MUTING4 OVERRIDE1 OVERRIDE2 RESET1/RESET2 ENC1_A/B ENC2_A/B ENC3_A/B ENC4_A/B |
Input Impedance 4.7 kΩ AWG28 |
|
| Interface | Configuration | USB2.0 (USB micro type-B connector) | |
| RS-485 (Cable) | |||
| Ethernet 100BASE-TX (Water proof connector) | |||
| Communication data | Measurement Error(Distance)*5 | ±20mm(TYP) | |
| Max Range(Distance) | 40m | ||
| Angular Error*4 | Vertical Plane | ±1°(Beam divergence is excluded) | |
| Horizontal Plane | ±0.3°(Beam divergence is excluded) | ||
| Environmental Resistance | Temperature | -10 to + 50 degress C (No freezing) | |
| Storage Temperature | -25 to + 70 degress C (No freezing) | ||
| Humidity | 95% RH with no condensation | ||
| Storage Humidity | 95% RH with no condensation | ||
| Surrounding Intensity*6 | Less than 1500lx | ||
| Vibration | Frequency range : 10～55 Hz Sweep rate : 1octave/min | ||
| Amplitude : 0.35mm ±0.05mm | |||
| Bump | Acceleration : 98m/s2(10G) Pulse duration : 16 ms | ||
| Outdoor Operation | Not permitted | ||
| Altitude | Below 2000m | ||
*1. Distance when reflectance of the object is 90% or above.
*2. Additional distance of 200 mm is needed when the UAM is working under high reflective background.
*3. Maximum configurable area in encoder input mode is 128.
*4. Total current supply of OSSD output and Warning output should be below 1.0A.
*5. Reference data measured at the manufacturer’s facility
*6. When the light sources are located at ≧5° from the detection plane of UAM.
*7. This can be selected using UAM Project Designer 3.1.0.
Compatible with products with Firmware version: 1.1.0 or later.

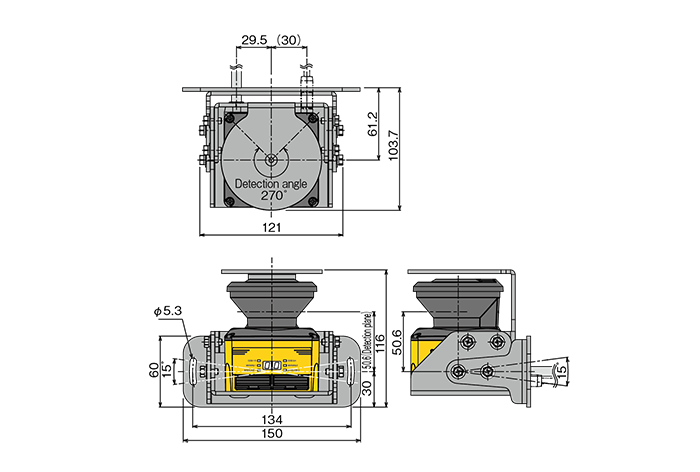

External dimension

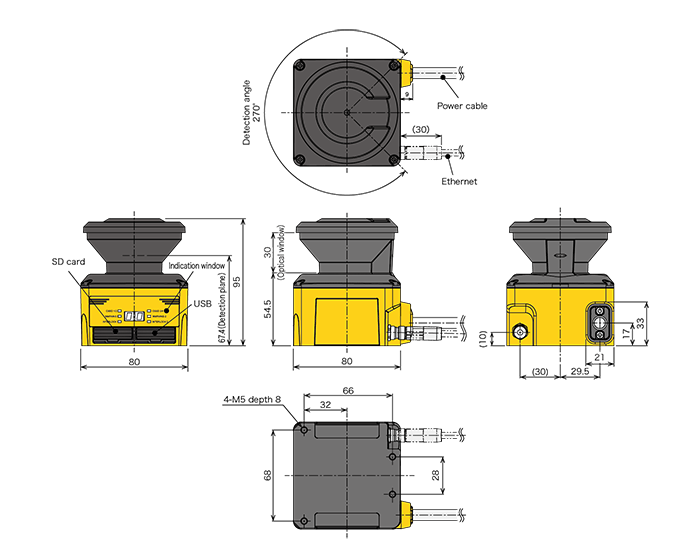

UAM-05LPA-T301
UAM-05LPA-T301C
Rear mounting bracket installed (with cover bracket)
*Dimensions when rear mounting bracket UAM-BK04 and cover bracket UAM-BK05 are combined.
Base mounting bracket installed (with cover bracket)
*Dimensions when base mounting bracket UAM-BK03 and cover bracket UAM-BK05 are combined.
Rear mounting bracket installed (with protection cover)
*Dimensions when rear mounting bracket UAM-BK04 and protection cover UAM-BK06 are combined.
Base mounting bracket installed (with protection cover)
*Dimensions when base mounting bracket UAM-BK03 and protection cover UAM-BK06 are combined.
