Safety Laser Scanner/UAM-05LP-T301

Scanning Rangefinder CEUL

World`s smallest
Safety Laser Scanner


A compact design for installation on AGVs,
AGCs as well as in vertical guarding applications.


Conformity Standards
IEC61496-1/3 : Type3
IEC61508 : SIL2
ISO13849-1 : PL d Category3

  • Overview
  • Applications
  • Model No.
  • Specifications
  • External dimension
  • Downloads
  • Programming

Overview

-> Protection zone : 5m 270°
-> Data Output via Ethernet
-> Master-Slave Function
-> Dual Protection
-> Encoder Input

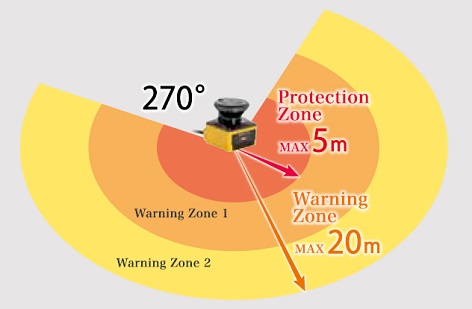

Protection over a Wide Range

Up to 5 meters of protection zone and 20 meters of warning zone configuration to suit various application requirement.

Master-Slave Function

Maximum 4 units of UAM can be interconnected for Master-Slave operation when multiple units are required to guard the hazardous area. The system can be controlled by connecting the input and output signals to Master unit only. Important Note: It is not possible to control the actuators via master-slave bus communication.

Dual Protection Mode

UAM can simultaneously protect two hazardous areas. Separate OSSD signals are triggered for the respective protection zones making it possible to guard two machines with a single UAM.

Examples

Collision Prevention

32 area patterns to accommodate the AGV travel path for collision prevention.

Area Protection

Detects humans or object entering the hazardous area.

Access protection

Detects access to critical zone. Reference boundary monitoring feature improves the safety by detecting the gaps around the protection zone and sensor's misalignment.

Model


* Sensor unit
Model Number Code Number Cable type Notes
UAM-05LP-T301 UUAM005 Flying cable 3m
UAM-05LP-T301C UUAM006 Cable 0.3m
with waterproof connector
The connector cable is required. Please see the Extension cable line-up in the option list.

* Extension cable for flying cable type UAM-05LP-T301 (Option)
Model Number Code Number Length Notes
UAM-5C10 UZ00066 10m Bare cable
UAM-5C20 UZ00067 20m

* Extension cable for connector type UAM-05LP-T301C (Option)
Model Number Code Number Length Notes
UAM-5C02C UZ00081 2m UAM-05LP-T301 requires 1 cable each
UAM-5C05C UZ00082 5m
UAM-5C10C UZ00083 10m
UAM-5C20C UZ00084 20m

* USB cable (Option)
Model Number Code Number Length Notes
UAM-MUSB UZ00065 1m For Area configuration

* Ethernet cable (Option)
Model Number Code Number Length Notes
UAM-ENET UZ00062 3m Necessary for distance data output

* Bracket (Option)
Model Number Code Number Mounting position Notes
UAM-BK03 UZ00059 Base mounting
UAM-BK04 UZ00060 Rear mounting
UAM-BK05 UZ00061 Cover of the top-part For protection of the optical window used in combination with UAM-BK03 or BK04

* Optical window (Option)
Model Number Code Number Notes
UAM-W002 UZ00064 For replacement when damaged and only to be fitted by approved personnel

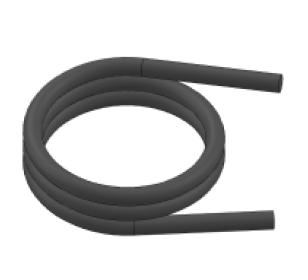

Extension bare cable

Bare cable is for UAM-05LP-T301

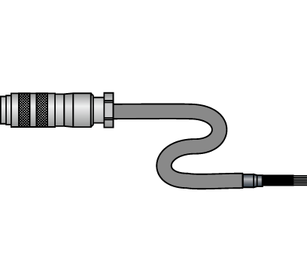

Extension connector cable

Connector cable is for UAM-05LP-T301C

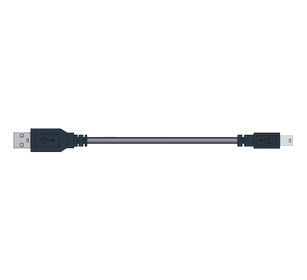

USB cable : UAM-MUSB

Ethernet cable : UAM-ENET

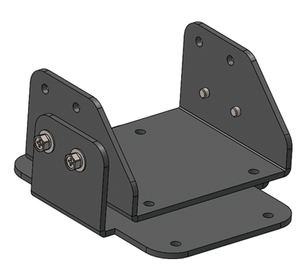

Base mounting bracket

UAM-BK03

Rear mounting bracket

UAM-BK04

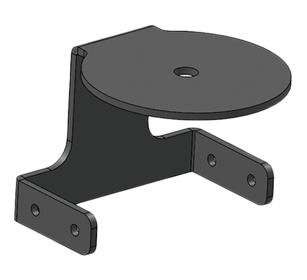

Cover bracket

UAM-BK05

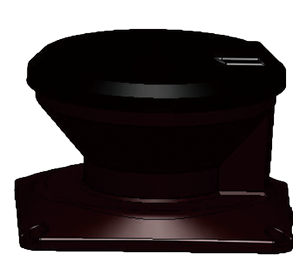

Optical window

UAM-W002

Specifications

Subject Specifications
Model UAM-05LP-T301
Detection Property Protection Range Max: 5m
Warning Range Max: 20m (Non-safety)*1
Distance Tolerance*2 +100mm
Detection Capability From Black-Reflector sheet(1.8%) to Retro- Reflector Sheet
Detection Range 270°
Minimum Detectable Width φ30mm (Max : 1.8m)
φ50mm (Max : 3.0m)
φ70mm (Max : 5.0m)
Scan Frequency 30ms (Rotational Speed 2000rpm)
Area Pattern MAX 32 patterns
Response Time OFF : 60ms ~ 510ms
ON : 270ms ~ 510ms
Optics Element Pulsed Laser Diode
Wavelength 905nm
Safety class Laser Class 1
Type Type 3 (IEC61496-1,IEC61496-3)
Functional Safety SIL 2(Type B, HFT=1) (IEC61508)
PFHd 7.8×10-8 (T1=20year) : When master slave function is not in use
1.6×10-7 (T1=20year) : When master slave function is in use
Housing Size 80.0mm (W) , 80.0mm (D) , 95.0mm (H) (without cable)
Weight 0.8kg
Protection IP65
Case Material Body : Aluminum / Optical Window : Polycarbonate
Conenection Cable Flying lead cable length : 3m
Power supply DC 24V ±10% : when operating with converter power supply
DC 24V -30%/+20% : when operating with battery
Supply power Normal (without load) 6W
Max.(with load) 50W
Output OSSD1/2 (Safety) Output type (High side SW)
Output current (Max : 500mA)*3
Leak current (Max : 1mA)
AWG 26
Load tolerance (L/R=25ms, C=1μF)
OSSD3/4(Safety)
WARNING 1/2
(Non-Safety)
Output types (High side SW)
Output current : (Max : 250mA)*3
Leak current (Max : 1mA)
AWG 28
Load tolerance (L/R=25ms, C=1μF)
RES_REQ 1
RES_REQ 2
MUT_OUT 1
MUT_OUT 2
Output types (PNP Transistor)
Output current : (Max : 200mA)*3
Leak current (Max : 1mA)
AWG 28
Input Area pattern 32
(5 Inputs × 2 Channels)
EDM1/EDM2
MUTING1/MUTING2
MUTING3/MUTING4
OVERRIDE1
OVERRIDE2
RESET1/RESET2
ENC_A1/ENC_A2
ENC_B1/ENC_B2
Input Impedance 4.7 kΩ
AWG28
Interface Configuration USB2.0 (USB micro type-B connector)
Data output Ethernet 100BASE-TX (Water proof connector)
Environmental Resistance Temperature -10 to + 50 degrees C (No frost)
Storage Temperature -25 to + 70 degrees C (No frost)
Humidity 95% RH with no condensation
Storage Humidity 95% RH with no condensation
Surrounding illumination*4 Less than 1500lx
Vibration Frequency range : 10~55 Hz Sweep rate : 1octave/min
Amplitude : 0.35mm ±0.05mm
Shock resistance Acceleration : 98m/s2(10G) Pulse duration : 16 ms
Outdoor Operation Not permitted
Altitude Below 2000m
*1. Distance when reflectance of the object is 90% or above.
*2. Additional distance of 200 mm is needed when the UAM is working under high reflective background.
*3. Total current supply of OSSD output and Warning output should be below 1.0A.
*4. When the light sources are located at ≧5° from the detection plane of UAM.

External dimension

Sensor

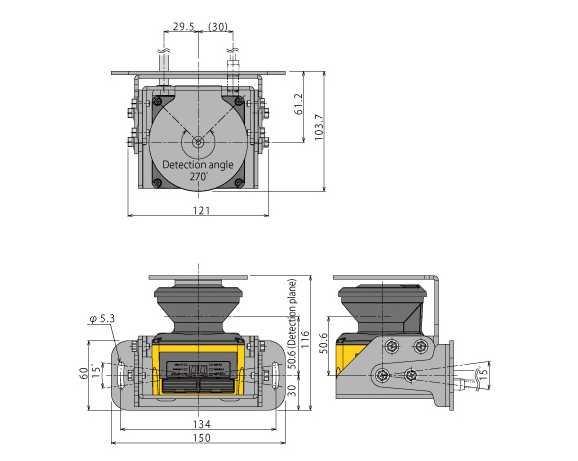

Fixed Condition of Rear mounting bracket with Cover bracket

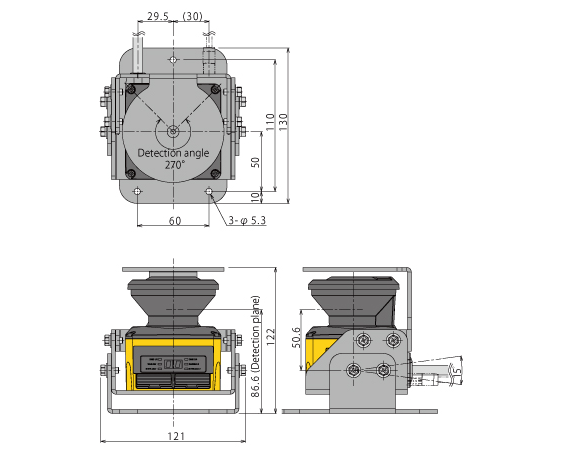

Fixed Condition of Base mounting bracket with Cover bracket

I/O Circuit

Characteristics Data

Option
