DC-JB/JC

DC-JB/JC

Auto CounterElectronic Counter
This product is no longer in production or sales.

VARIOUS FUNCTIONS IN DIN SIZE(48×48)!

Overview

Features

-> Excellent visibility by white LCD
-> It can be changed to easy mode or multi mode. It can show the setting condition.
-> 12 digits total counter is built-in.(It can show producing numbers per day, month or year)
-> Corresponding to each output mode(Self-holding, One-shot, Agree, Comparing)
-> Pre-scale function provides.(0.001 to 9.999) Decimal point can be changed.
-> Corresponding to each input mode(increment/decrement independence, Phase-difference, Increment, Decrement, Increment/decrement command
-> CE Marking, IP66 protection(only front panel with rubber packing), Protecting structure with terminal cover, Key-protection for prevention mishandling provides

Specification

Type 1-preset counter 2-preset counter
Model No. DC-JB6-AW DC-JB6-AY DC-JB6-DW DC-JB6-DY DC-JC6-AW DC-JC6-AY DC-JC6-DW DC-JC6-DY
Power source 100 to 240VAC(50/60Hz) 24VDC(ripple 20% or less) 100 to 240VAC(50/60Hz) 24VDC(ripple 20% or less)
Fluctuation range ±10% when 24VDC, 85 to 250VAC
Power consumption 4VA*1(240VAC) 1W(24VDC) 5VA*1(240VAC) 1W(24VDC)
Number of digit 6 digits, -99999 to 999999(Total counter : 12 digits)
Memory function EEP-ROM(Re-writing 0.1 million times or more)
Counting speed Changeover for 30Hz/5kHz
Reset External reset, manual reset, automatic reset
Pre-scale 0.001 to 9.999
Decimal point position Lower 4 digits
Single-shot time 0.005 to 9.999s
Display 7-segment LCD(LED back-light)
Input mode Changeover for Increment/decrement independence, Phase-difference, Increment, Decrement, Increment/decrement command
Output mode Changeover for One-shot return, Self-holding free, One-shot free, Agree free, Comparing free
Output function Changeover for standard or digit-up Standard/Batch/Prediction
Input signal Contact or open-collector, Impedance when ON(short-circuit) : 1k ohm or more, Impedance when OFF(short-circuit) : 100k ohm or more, Flowing current when short-circuit : approx. 4mA
Control output Transistor output(NPN open-collector) : 100mA or less, 40V or less
Contact output(1c,1a*2) : 250VAC/30VDC 3A Resistance load(cosφ=1)
Power for sensor 12VDC, 50mA - 12VDC, 50mA -
*1 It includes external power source.
*2 Only AC power type with 2-preset provides

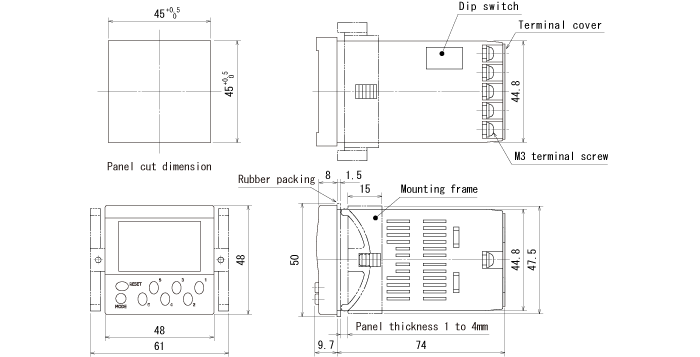

External dimension

DC-JB/JC

DC-JB/JC

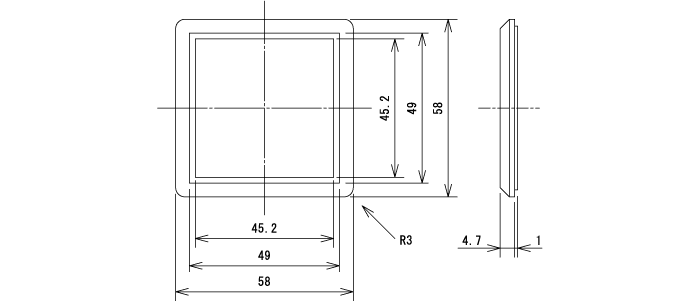

60→48 frame(GZ00003)

60→48 frame(GZ00003)
Use this frame when using DC-J instead of our counter with 60×60 such as DC-NXB, DC-S series.

I/O Circuit

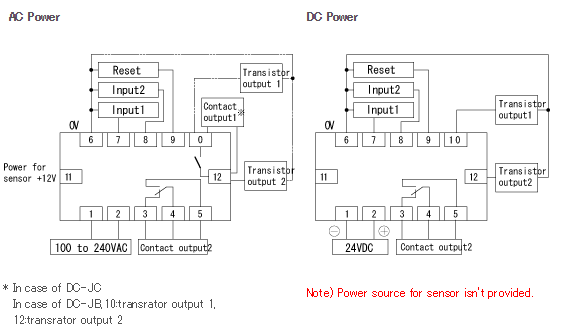

Connection

Connection
Caution
1.Don't use empty terminal as relay terminal.
2.Each input for counting and reset is common use for contact and transistor. Make a wiring with 2-core shield wire and metal as short as possible. Also, don't make a wiring with power and high voltage line etc.
3.Use solderlss terminal for M3.
4.Function of output 1 is different between DC-JB and DC-JC. DC-JB : carry output, DC-JC : standard, batch and prediction output(depending on counter mode). Output 2 is standard output for both DC-JB and DC-JC.

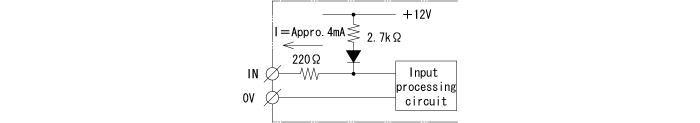

Input(Counting1/Counting2/Reset)

Input(Counting1/Counting2/Reset)

Transistor output

Transistor output

Contact output(1A relay)

Contact output(1A relay)

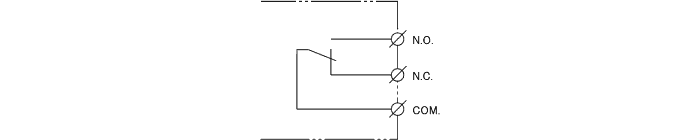

Contact output(1C relay)

Contact output(1C relay)
