DC-M
Auto CounterElectronic Counter
This product is no longer in production or sales.
Easy operation, clear display & easy pre-set
Overview
Features
-> All models provide increment/decrement counting and this counter can apply to wide range of application because of free voltage, 100 to 240VAC.
Specification
72×72mm type
72×144mm type
* DC-MOW with BCD read-out output is also lined up. Ask us in details.。
| Type | Increment/decrement type total counter | Increment/decrement type preset counter |
| Model No. | DC-MA6-D | DC-MB6-D |
| Display | Red LED(changeover by green and orange LED) 7-segment LED(Height10mm, Width5.7mm), Range: 999999 to -99999 (Zero-suppress) |
|
| Number of digit | 6 digits | |
| Power source | 100 to 240VAC（50/60Hz) | |
| Fluctuation range | -15％ to ＋10％ | |
| Power consumption | Approx. 4.5VA(when 240VAC) | |
| Counting | Contact/transistor open-collector input : Counting when OFF→ON, voltage input: Counting when “L”→“H” | |
| Preset | - | 1 |
| Preset method | - | Digital switch for each digit |
| Counting speed | 30Hz: Min. signal width 16.7msec, make-ratio 1:1 5kHz: Min. signal width 100μsec, make-ratio 1:1(Changeover by slide switch) |
|
| Counting prohibited | Prohibited when ON("H" level in case of voltage input)Response time: 16msec or less(when 30Hz), 100μsec or less(when 5kHz) | |
| Counting/ reset/counting prohibited input | Contact/transistor open-collector input Impedance(ZON): 1kΩ or less when ON(Short-circuit), Impedance(ZOFF): 5kΩ or more when OFF(Opened) | |
| Control output operation | Self-holding operation: It operates when preset value and returns by reset Single-shot operation: It operates when preset value and returns after specific time(200ms） |
|
| Power source for sensor | 12VDC（+10％, -10％）, 100ｍＡ（Ripple 5% or less） | |
| Ambient temperature, humidity | -10 degrees C to ＋45 degrees C（-20 degrees C to ＋55 degrees C when stored) 45 to 85%RH | |
| Memory time against power failure | Memory time/once: approx. 10 years, memory numbers: 0.1 million times | |
| Case | Case: ABS resin, dust-proof cover: polycarbonate | |
| Attachment | Dust-proof cover, fitting metal | |
72×144mm type
| Type | Increment/decrement type total counter | Increment/decrement type preset counter | Increment/decrement type 2-preset counter |
| Model No. | DC-MA6-E | DC-MB6-E | DC-MC6-E |
| Display | Red LED(changeover by green and orange LED) 7-segment LED(Height15mm, width8.8mm), Range: 999999 to -99999 (Zero-suppress) |
||
| Number of digit | 6 digits | ||
| Power source | 100 to 240VAC(50/60Hz) | ||
| Fluctuation range | -15％ to ＋10％ | ||
| Power consumption | 約4.5VA(when 240VAC) | ||
| Counting | Contact/transistor open-collector input : Counting when OFF→ON, voltage input: Counting when “L”→“H” | ||
| Preset | - | 1 | 2 |
| Preset method | - | Digital switch for each digit | |
| Counting speed | 30Hz: Min. signal width 16.7msec, make-ratio 1:1 5kHz: Min. signal width 100μsec, make-ratio 1:1(Changeover by slide switch) |
||
| Counting prohibited | Prohibited when ON("H" level in case of voltage input)Response time: 16msec or less(when 30Hz), 100μsec or less(when 5kHz) | ||
| Counting/ reset/counting prohibited input | Contact/transistor open-collector input Impedance(ZON): 1kΩ or less when ON(Short-circuit), Impedance(ZOFF): 5kΩ or more when OFF(Opened) | ||
| Control output operation | Self-holding operation: It operates when preset value and returns by reset Single-shot operation: It operates when preset value and returns after specific time(200ms） |
||
| Power source for sensor | 12VDC（+10％, -10％）, 100ｍＡ（Ripple 5% or less） | ||
| Ambient temperature, humidity | -10 degrees C to ＋45 degrees C（-20 degrees C to ＋55 degrees C when stored) 45 to 85%RH | ||
| Memory time against power failure | Memory time/once: approx. 10 years, memory numbers: 0.1 million times | ||
| Case | Case: ABS resin, dust-proof cover: polycarbonate | ||
| Attachment | Dust-proof cover, fitting metal | ||
External dimension
72×72mm type

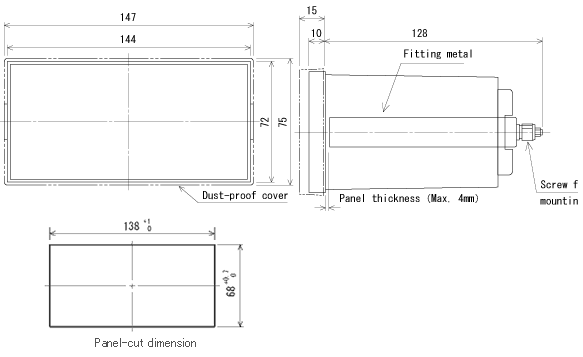

72×144mm type
I/O Circuit

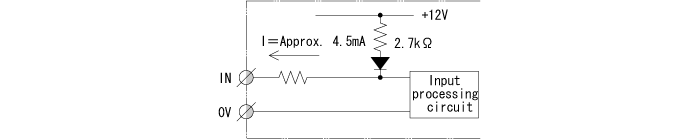

Contact/transister open-collector input

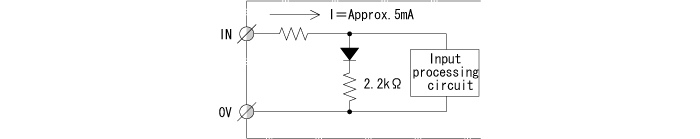

Voltage input
Connection

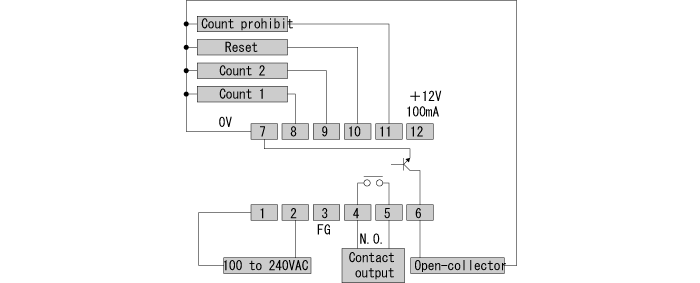

DC-M_Connection 72×72mm type
Contact/Open-collector input
Note) Count 1 terminal [8] is increment, Count 2 terminal [9] is decrement. In case of 90 phase-difference input, when Count 1 is shifted shifted by 90°, it is increment counting, and when Count 2 is shifted 90°, it is decrement counting.
Note) In case of Total counter, [4] [5] [6] terminal are not used.
Note) FG [3] terminals should be grounded.
Contact/Open-collector input
Note) Count 1 terminal [8] is increment, Count 2 terminal [9] is decrement. In case of 90 phase-difference input, when Count 1 is shifted shifted by 90°, it is increment counting, and when Count 2 is shifted 90°, it is decrement counting.
Note) In case of Total counter, [4] [5] [6] terminal are not used.
Note) FG [3] terminals should be grounded.
Connection

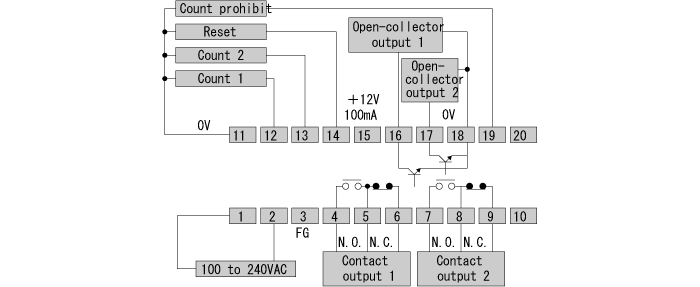

DC-M_Connection 2×144mm type
Contact/Open-collector input
Note) Terminals [11] and [18] are connected inside
Note) Count 1 [12] is increment counting and Count 2 [13] is decrement counting. In case of 90°phase-difference input, when Count 1 is shifted by 90°, it is increment counting, and when Count 2 is shited by 90°, it is decrement counting.
Note) In case of total counter, [4] [5] [6] [7] [8] [9] [16] [17] terminals are not used.
Note) In case of preset counter (1 preset type), [4] [5] [6] [16] terminals are not used.
Note) FG ([3] terminal) should be grounded.
Caution
* Do not use unused terminal as relay terminal.
* Each input to counting, reset and count prohibition is common use for contact and open-collector. Wire to each input and output terminal 2-core shield wire or metal conduit tube as short as possible. Do not lay the wires close to or parallel to line cable, power cable or high voltage line.
* For connection, use M3 pressure connection terminals.
Contact/Open-collector input
Note) Terminals [11] and [18] are connected inside
Note) Count 1 [12] is increment counting and Count 2 [13] is decrement counting. In case of 90°phase-difference input, when Count 1 is shifted by 90°, it is increment counting, and when Count 2 is shited by 90°, it is decrement counting.
Note) In case of total counter, [4] [5] [6] [7] [8] [9] [16] [17] terminals are not used.
Note) In case of preset counter (1 preset type), [4] [5] [6] [16] terminals are not used.
Note) FG ([3] terminal) should be grounded.
Caution
* Do not use unused terminal as relay terminal.
* Each input to counting, reset and count prohibition is common use for contact and open-collector. Wire to each input and output terminal 2-core shield wire or metal conduit tube as short as possible. Do not lay the wires close to or parallel to line cable, power cable or high voltage line.
* For connection, use M3 pressure connection terminals.
