PBS-03JN

Overview

Features

-> It is 60% smaller than PB9 in volume. Scanning angle(Detection field) is increased to 180° and detection dead zone got smaller.
-> Operation principle: The detection field is scanned by LED (lambda = 880nm), objects coordinates are calculated, then obstacle presence in the setting area is detected..
-> Detection area is configurable by PC(RS-232C). For each area, it is possible to configure 3 outputs.
-> It is possible to switch the 15 detection areas configured by PC using external inputs.

Structure(Light scanning image)

Specification

Model No.		PBS-03JN
Power source		24VDC(Allowable range 18 to 30VDC including ripple)
Current consumption		250mA or less(100mA or less when emission stops) Except for I/O terminal current and rush current(500mA)
Light source		Infra-red LED
Detectable object and detection area		White paper with 300×300mm(Placed in parallel with sensor projection surface), 0.2 to 3m×2m(Origin point is the scanning center position) and within scanning angle 180°

Area setting	Output 1	It is configurable from 0 to 10m in optical axis direction with 7 points.
	Output 2,3	Linear or fan-shaped setting in optical axis direction,
		Percentage setting is a ratio of output 1
2 scans mode		It is configurable for each output of each area.
Hysteresis		10% of detection distance or less (it does not get less than 60mm)
Output		Photo-coupler/NPN open-collector output(30VDC 50mA or less) Output 1,2,3 : output OFF when obstacle is area, malfunction output : output ON when operating normally*
Inputs (1 to 4)		Photo-coupler input (Common anode, each input current is 4mA or more), They control the current detection area.

Detection area setting		It is switched by inputs (1 to 4) Emission is stopped when all inputs(1 to 4) are ON (OFF : H level input, ON : L level input)
Output response time		180msec or less(Scanning speed 1 rev./100msec) 280msec or less when 2 scan mode (except for 100msec, area switching time)
Input response time		Input capture period : 1 scan time (100msec)
LEDs		Power LED(Green) : Flickered when trouble Output 1, 2 and 3 LED(Orange) : Lights up when obstacle is in area
Connection		1m flying leads cable
Ambient illuminance(note)		Halogen/mercury lamp : 10,000lx or less, Fluorescent lamp : 6,000lx or less
Ambient temperature/humidity		-10 to +50 degrees C, 85％RH or less(No condensation, no icing)
Vibration resistance		10 to 55Hz, double amplitude 1.5mm, 2 hour in each X, Y and Z directions
Impact resistance		490m/s², 10 time in each X, Y and Z directions
Protective structure		IP64(IEC standard)
Lifespan		5 years(motor life)
Materials		Front case : Polycarbonate, rear case : ABS
Weight		Approx. 500g

* Output 1 to 3 are OFF when malfunction output is OFF.
Note) Strong light such as sun light may introduce a sensor malfunction.

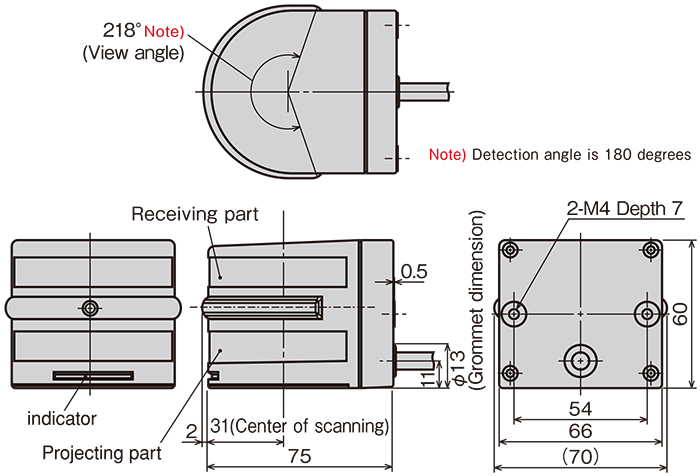

External dimension

Note) Detection area is 180°

I/O Circuit

Input/output circuit

Connection

Colors	Signals
Black	Output 1
White	Output 2
White(Blue)	Output 3
Orange	Trouble output
Gray	Output common minus
Red	Input common plus
Green	Input 1
Yellow	Input 2
Purple	Input 3
White(Yellow)	Input 4
Brown	+VIN
Blue	-VIN
Yellow(Red)	Serial input(RXD)
Yellow(Green)	Serial output(TXD)
Yellow(Black)	Serial GND

Note)Input/output direction is mentioned on the basis of PBS.
