AreaDesigner for Tablet

AreaDesigner for Tablet

Scanning RangefinderArea Configuration

Android/iOS app of AreaDesigner for tablet

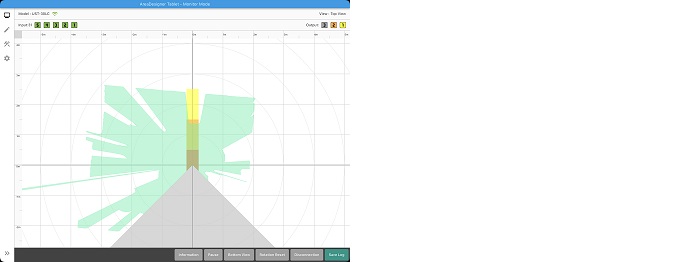

Measurement monitoring and confirmation of area settings is possible from Android/iOS tablet device.

Overview

Area configuration from iOS or Android OS tablet device

Area configuration from iOS or Android OS tablet device
Area setting type LiDAR can be configured from iOS or Android OS tablet device.

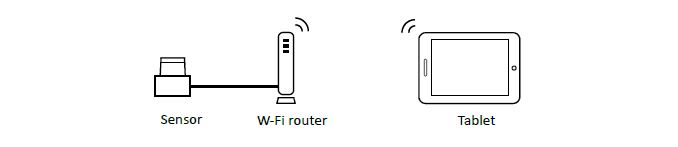

By connecting Wi-Fi router to the sensor, it is possible to troubleshoot AGV/AMR obstacle detection when it is difficult to approach the installation location (such as at a high place), and also possible to configure area settings and check the situation remotely.
*If you wish to communicate with the sensor using Wi-Fi, please prepare Wi-Fi router separately.

Functions

Functions
・Monitoring of measurement data
・Monitoring of I/O information
・Save measurement log
・Read/display sensor information
・Area loading/display
・Sensor settings loading/display
・Sensor restart

Target model

・ UST-30LC/LCN ・ UST-30LC/LCN-X01 ・ UXM-30LAH-EWA/EHA ・ URM-40LC/LCN-EW ・ URM-40LXH-EW ・ UGM-50LAP/LAN ・ UGM-50LXP/LXN

About obtaining A license key

A license key is required to use AreaDesigner for Tablet.
Please obtain A license key from "Downloads".

App for Android

Get it on Google Play
Google Play and the Google Play logo are trademarks of Google LLC.

App for iOS

Download on the App Store
App Store and the App Store logo are trademarks of Apple Inc.

Downloads

Before Download

Only members can download the file.
If you have not registered as a member, please register as a member by clicking the "Registration".
If you are already a member, please agree to the following terms and click the "Agree".

License for Downloading Materials

When downloading the product specifications, drawings and various types of materials and software related to the Hokuyo's product line, please read the terms of use in advance and then utilize the same with your understanding and consent. In case of dissent, please understand that you cannot register to and be recognized in the download page. (And the Terms of Use may be revised without prior notice.)

Terms of Use

Intellectual Property Rights
  • Copyrights and the other rights to contents such as sentences, data and software published on this Website (hereinafter referred to as "Contents") are held by Hokuyo or its suppliers.
  • The secondary application (copy, diversion, defacement, analysis, transmission, assignment, rental, licensing, and usage for the purpose of business activities or commercial gain) of the Contents on this Website posted by Hokuyo is strictly prohibited without our prior approval. Specific terms of use described for each download site or Contents shall apply in preference to the Terms of Use.
  • Provision of the Contents on this Website by Hokuyo means neither a transfer of the patent rights, design rights, and/or the other intellectual property rights to inventions and designs in the Contents, nor a grant of any rights based on the intellectual property rights.
Disclaimer

Hokuyo pays full attention to the information that appears on this Website, but does not take responsibility for the following items:

  • The information that appears on this Website is always the latest version, and is updated or corrected timely and properly;
  • The information that appears on this Website is accurate, useful and safe;
  • Customer's damage incurred by the use of this Website, including changes or deletions of the information, discontinuation or suspension of the publication; and
  • Any and all damage incurred by using this Website.

Download List

Category File name File size Date modified Download
Tool
AreaDesigner_Tablet_License_KeyA license key is required to use AreaDesigner_Tablet.
---
2024-03-29
Manuals
AreaDesigner_Tablet_Manual
---
2024-03-22
