UAM Monitor

Scanning RangefinderArea Configuration

UAM Monitor
Smartphone app for the UAM series (Android/iOS).
It enables monitoring of sensor measurement data and checking output status from Android/iOS devices.

Overview
Downloads

Overview

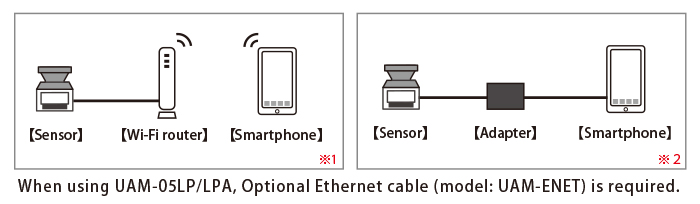

Accessible from Android and iOS devices

UAM series can be accessed from Android and iOS devices.
It supports both wireless LAN communication via Wi-Fi router and wired LAN communication via LAN-to-USB (Lightning) adapter.

This enables use in situations where it is difficult to physically access the installation location (such as at elevated positions), as well as for AGV/AMR obstacle detection troubleshooting, remote monitoring of measurement data, and verification of output status.

Note 1: A Wi-Fi router must be provided by the customer.
For the UAM-05LECA, please use a router that supports static routing.

Note 2: A conversion adapter must be provided by the customer.
Supported on iPhone/iPad only.

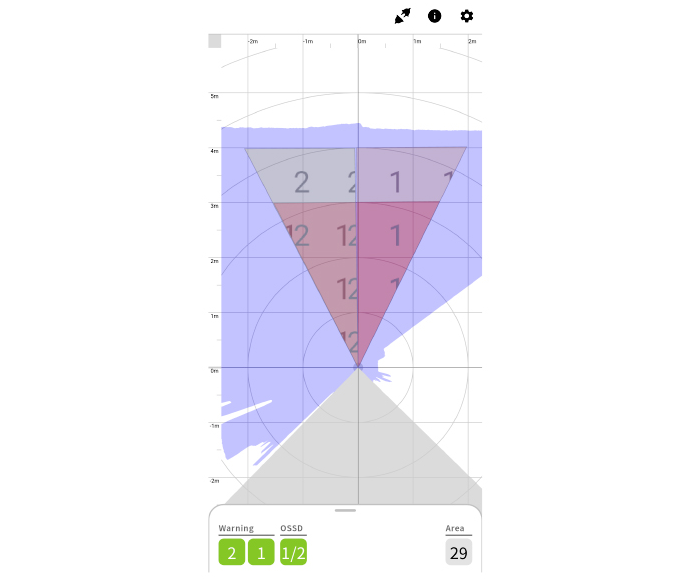

Functions

・Measurement data monitoring
・Output status monitoring

Supported Models

・UAM-05LP-T301
・UAM-05LPA-T301
・UAM-05LECA-T301

* UAM-05LP is supported only with firmware version 2.4.0 or later.

How to Obtain a License Key

License key is required for use.
Please obtain it from the download page.

Android App (URL will be updated once available)

Google Play and the Google Play logo are trademarks of Google LLC.

iOS App (URL will be updated once available)

App Store and the App Store logo are trademarks of Apple Inc.
