Area Configuration /Distance Data Output/UXM-30LAH-EHA

Scanning Rangefinder CE

Hard-coating optical lens is provided.

Upgraded with finer resolution. Multi-echo functionality and IP67 protection for harsh environments such as rain, snow and fog.

  • Overview
  • Applications
  • Specifications
  • External dimension
  • Downloads
  • Programming

Overview

-> Improved durability by hard coating.
    Troubles such as deterioration of distance accuracy due to scratches can be reduced by hard coating of optical window
-> Multi Echo Functionality is ideal for applications in harsh environments such as rain, snow and fog
-> Synchronization functionality for interference prevention
-> Built-in heater for cold environments
-> Better accuracy, finer resolution, longer scanning distance

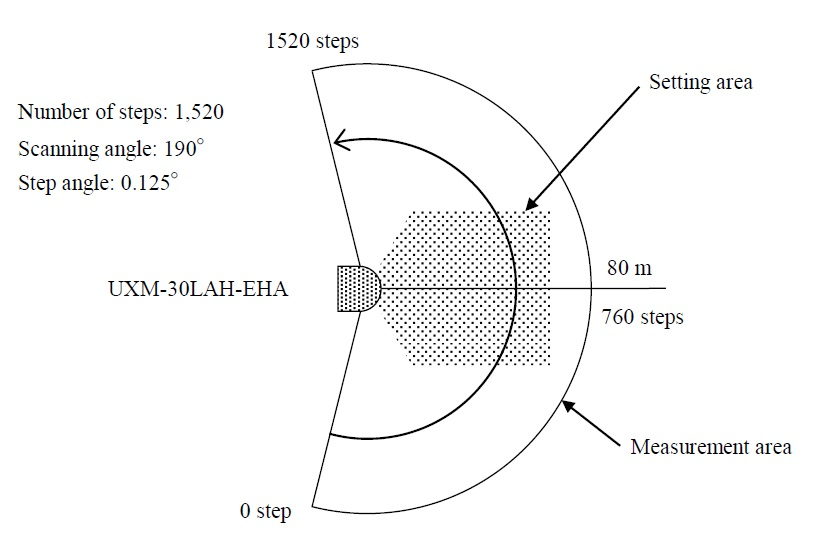

Laser Scanning Image

Examples

Collision prevention

Area monitoring for collision prevention of RTGs, RMGs and AGVs

Container positioning

Possible to pick up containers precisely based on distance and angle measurements obtained from the sensor.

Terrain measurement

Terrain measurement and analysis using distance data obtained for maintenance of roads, bridges and cultural properties.

Vehicle detection

Vehicle detection on roads or within a factory as a safety measure. Also, possible to detect traffic congestion or speed of vehicles.

Model

Specifications

Product name Laser range finder
Type UXM-30LAH-EHA
Light source Semiconductor laser, λ=905nm, safety class of the laser = 1
Power supply voltage 10 to 30VDC
Power supply current Steady-state current: 600mA or less at 12VDC, 300mA or less at 24VDC
Starting current: 1.5A or less at 12VDC, 0.75A or less at 24VDC
Heater in use(0°C or below): 1.25A or less at 12VDC, 1.25A or less at 24VDC
Electric power consumption 7.2W or less(at steady-state)
Heater in use(0°C or below: 15W or less at 12VDC, 30W or less at 24VDC)
Detecting distance and object to be detected Guaranteed value of detection:
0.1 to 30m*1(Reflectance of 10%, black paper, 500mm×500mm)
0.1 to 80m*1(Reflectance of 90%, white Kent paper, 1,000mm×1,500mm)
Maximum detecting distance: 80m(maximum value of area setting)
Minimum object to be detected: 33mm(5m), 65mm(10m), 200mm(30m)
Average accuracy by distance 10% reflectance, black paper, 0.1 to 15m:±30mm, 15 to 30m:±50mm*1
0.1 to 30m:±50mm*2 Ambient illuminance: 3,000 lux or less
0.1 to 20m:±50mm*2 Ambient illuminance: 100,000 lux or less
90% reflectance, white Kent paper, 0.1 to 30m:±30mm*1
0.1 to 30m:±50mm*2 Ambient illuminance: 3,000 lux or less
0.1 to 20m:±50mm*2 Ambient illuminance: 100,000 lux or less
Measurement resolution Unit of 1mm
Repeat accuracy 10% reflectance, black paper, 0.1 to 15m: σ<10mm, 15 to 30m: σ<15mm*1
0.1 to 30m: σ<20mm*2 Ambient illuminance: 3,000lux or less
0.1 to 20m: σ<30mm*2 Ambient illuminance: 100,000lux or less
90% reflectance, white Kent paper, 0.1 to 30m: σ<10mm*1
0.1 to 30m: σ<15mm*2 Ambient illuminance: 3,000lux or less
0.1 to 30m: σ<30mm*2 Ambient illuminance: 100,000lux or less
Scanning angle 190°
Angular resolution Approx. 0.125°(360°/2880 divisions)
Scanning time 50ms(rotating speed of motor: 1200rpm)
Interface Ethernet 100BASE-TX(Auto-negotiation)
Output OUTPUT 6 points: Synchronization master output, synchronization output, output of failure, area detection output 1 to 3
Input INPUT 5 points: Synchronization input, area input 1 to 4(total 15 patterns)
Output response time 100ms or less;however, it varies depending on the setting
Starting time Operation starts within 30sec after turning on of power supply.
Indication lamp Indication lamp for power supply and operation(green), indication lamp for communication measurement(orange)
Regarding the operation of indication lamps, refer to sub-clause 7.2.
Ambient operating temperature, humidity -10 to +50°C 85%RH(However, dew condensation and freezing should not exist.)
Resistance to weather Detecting distance becomes shorter due to rain, snow, and sunlight.*3
Vibration resistance 10 to 55Hz, plural amplitude: 1.5mm in X, Y, Z directions, each 2 hours
55 to 200Hz 19.6m/s2 Sweep: 2 minutes in X, Y, Z directions, each 1 hour
Resistance to shock 196m/s2 in X, Y, Z directions, each 10 times
Protective structure IP67
Insulation resistance 10MΩ
Mass 1200g
Material Front face of the case: AES, Optical windows: Polycarbonate, Back face of the case: Aluminum
Outside dimension
(W×D×H)
124mm × 126mm × 150mm(connector not included)
*1. Indoor environment(fluorescent lamp, 1,000lux or less)
*2. Detection cannot be guaranteed when direct light(such as sunlight) enters the device.
*3. Regarding the influence of environment, please confirm with the actual equipment.

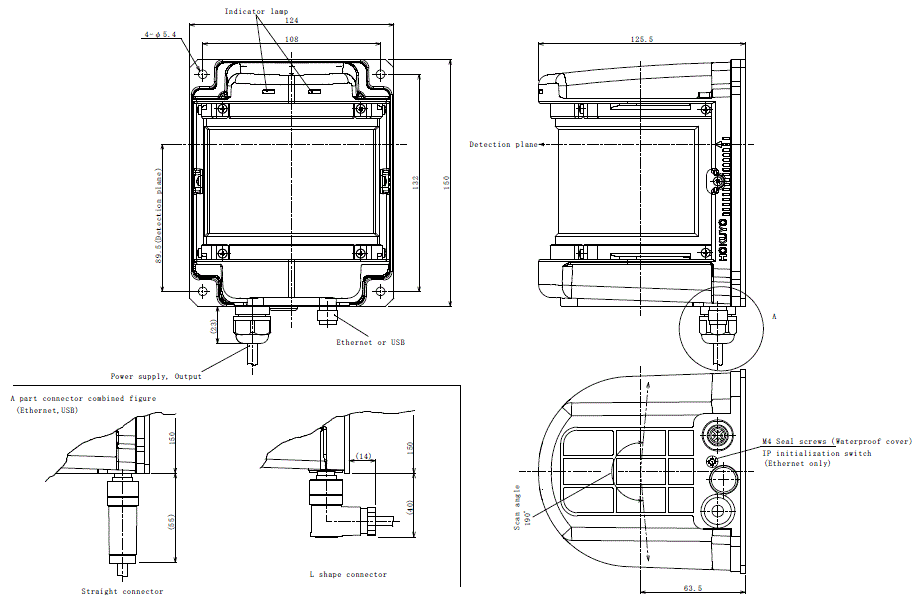

External dimension
