Area Configuration /Distance Data Output/URM-40LC-EWT
New 2D Scanning Range Finder for outdoor
Compact model and the 40m range.
Multi-echo functionality and IP67 protection with it.

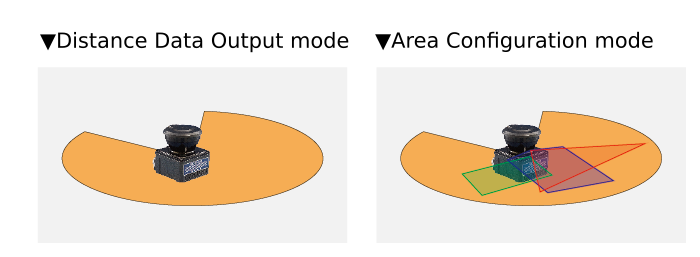

You can choose from distance data output mode or area configuration mode.
Compact model (80 mm x 80 mm x 95mm)
- Model No.
- External dimension
- I/O circuit
Strong for both Outdoor and Indoor usage.
* Protective structure: IP67

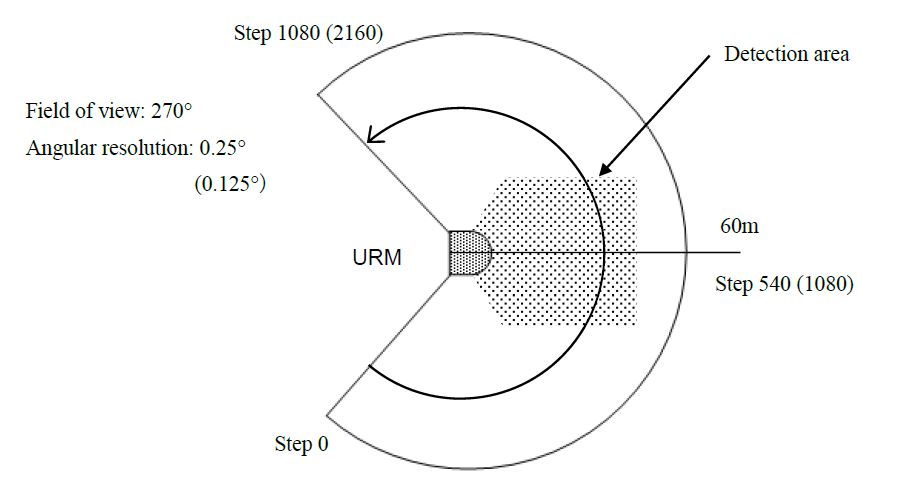

Laser scanning image

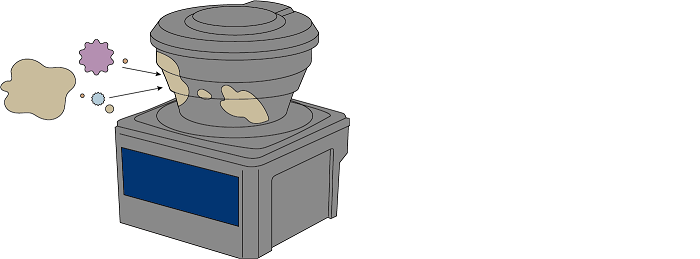

Optical window contamination warning function
and it will inform you before the malfunction stop.
Environment recognition for service robots
|Product name||Scanning Laser Range Finder|
|Light source||Laser semi conductor (905nm)
Laser Safety Class 1 (IEC60825 1:2007 and IEC60825 1:2014)
|Supply voltage||DC10V to 30V|
|Supply current||Continuous current : 700mA or less (when using DC 12V)|
|Peak current: 1.2 A or less (when using DC 12V)|
|Power consumption||8.4W or less (During steady current)|
|Detection range and object||0.1m to 40m*1 (White Kent sheet Reflectance 90% 500 mm×500mm )|
|0.1m to 18m*1 (Black paper Reflectance 10% 500mm×500mm )|
|Maximum detection distance: 60m|
|Minimum detectable size
Normal mode: 65mm (5m) , 130mm (10m), 260mm (20m)
High Resolution mode: 33mm (5m) , 65mm (10m), 130mm (20m)
|Average Accuracy by distance||White Kent sheet Reflectance 90%;
0.1m to 30m: ±20mm*1
30m to 40m: ±30mm* 1
|Repeat accuracy||White Kent sheet Reflectance 90%|
|0.1m to 20m: σ < 10mm *1, 20m to 40m : σ < 15mm*1|
|0.25゜／25ms (Normal mode)|
|0.125゜／50ms (High Resolution mode)|
|Interface||Ethernet 100BASE-TX (Auto-negotiation）|
|Outputs||5 OUTPUT; Area Detection 1 / Synchronization output, Area Detection 2,
Area Detection 3 / Synchronization master, Ready, Malfunction
|Inputs||3 INPUT Area 1, Area 2, Area 3 / Synchronization input
(Maximum area pattern : 7 patterns)
|Response time||Within 50ms (However, it differs depending upon the settings)|
|Start up time||Within 15 sec (start up time differs if malfunction is detected during start up)|
|LED display||Blue LED : Power supply and normal operation|
|Orange LED: Area determination
(About LED display refer to section 6.3 in specification sheet)
|-30°C to +50°C , below 85%RH (Without dew, frost)|
|Vibration resistance||10 to 55Hz double amplitude of 1.5mm for 2hrs in each X, Y, and Z direction|
|55 to 150Hz 98m/s2 (10G) sweep of 2min for 1hr in each X,Y and Z direction|
|Shock resistance||196m/s2（20G） X,Y and Z directions each 10 times|
*2 Detection cannot be guaranteed when direct light (such as sunlight) enters the device.
I/O CircuitInput/output circuit
Input: Photocoupler input
(Common Anode, 2mA during each input ON, 0.5 mA or below during OFF)
Output: PNP Open collector output
Maximum output current: 50mA
Maximum voltage: 30V
Example of connecting the input/output circuit
Example of wiring between sensor s for motor rotation synchronization

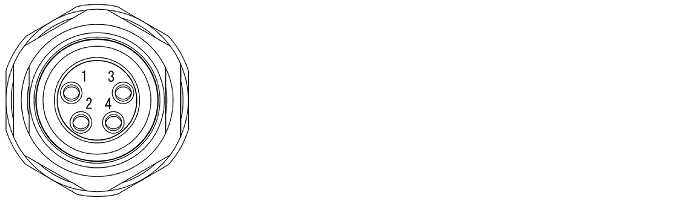

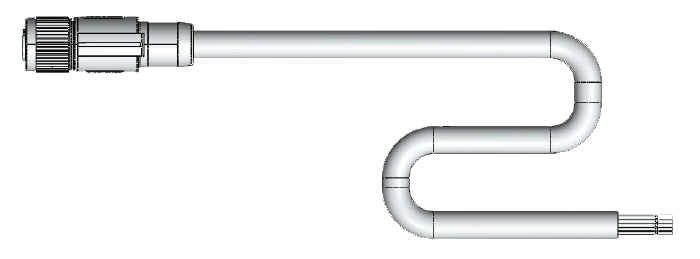

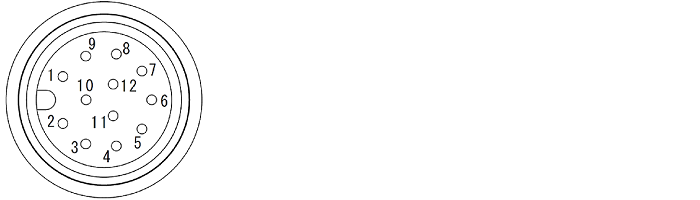

Power supply Input / Output connector
Maker ：PHOENIX CONTACT
