Parallel type/DMH-GB/HB

Optical Data Transmission Device

This device is high-speed type, data transmission device.

  • Overview
  • Specifications
  • External dimension
  • I/O circuit
  • Downloads

Overview

-> It is 5 times faster than DMS series and this device can communicate more data in specific time.

Examples

Model

Specifications

Type Parallel type
8-bit type
Model No. DMH-GB1 DMH-GB2 DMH-HB1 DMH-HB2
Transmission capacity(I/O) 8BIT/8BIT
Direction HEAD-ON SIDE-ON
Transmission distance 0.6m 3m 0.6m 3m
Directional angle ±15° ±5° ±15° ±5°
Transmission method Half-duplex two-way transmission
Transmission time 7msec
Modulation method FSK modulation
Detection method Bit-reverse comparison system
Power source 18 to 30VDC(ripple 10% or less)
Current consumption 100mA Max.
Ambient illuminance 10,000lux or less
Ambient temperature/ humidity -10 to +50 degrees C, 85%RH or less
Vibration resistance Double amplitude 1.5mm, 10 to 30Hz, each 2 hour in X, Y and Z directions
Impact resistance 500m/s2, each 10 time in X, Y and Z directions
Connection Lead wire (0.2mm2, 23 cores, shield cable 2m long)
Protective structure IP64(IEC standard)

External dimension

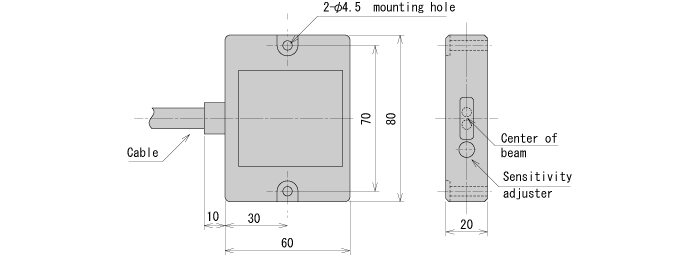

DMH-GB1, DMH-GB2(HEAD-ON type)

DMH-HB1, DMH-HB2(SIDE-ON type)

I/O Circuit

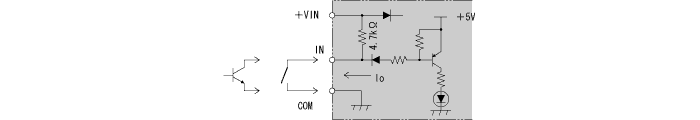

Input

Flow current when ON(IO) : approx. 5mA(when 24VDC)
Allowable residual voltage when ON : use it with 1.8V or less

Output

NPN open-collector output
35DC 50mA residual voltage 1.5V or less

Connector (1)   Connector (2)
Colors Pin No. Functions Colors Pin No. Functions
Pale blue 1 Power 0V Green / black 1 GO*3
Pink 2 Power +V Blue 2 STROBE*4
White 3 IN1 - 3 -
White / black 4 IN2 Purple 4 OUT8
Brown 5 IN3 Purple / black 5 OUT7
Brown / black 6 IN4 Gray 6 OUT6
Red 7 IN5 Gray / black 7 OUT5
Red / black 8 IN6 Pink / black 8 OUT4
Orange 9 IN7 Pale blue / black 9 OUT3
Orange / black 10 IN8 Pink/red 10 OUT2
Yellow 11 MODE*1 Yellow/red 11 OUT1
Yellow / black 12 COM(0V) - 12 -
Green 13 SELECT*2 - 13 -
Shield Shield
*1 MODE input
This is to choose transmission/reception mode when standing by
*Transmission stand-by mode by opened between mode and I/O COM
*Reception stand-by mode by short-circuited between mode and I/O COM
Note) If one side is set to transmission stand-by mode, other one should be set to reception standby mode.

*2 SELECT input
This is to stop transmission/reception optionally by outer signal
*Operating by opened between select and I/O COM
*Stopping by short-circuited between select and I/O COM

*3 GO output
This is to check correct optical single
*ON when receiving correct optical axis
*OFF when interrupting optical axis(Not-receiving)

*4 Strobe
It is getting ON when data is fixed.

Note) The connector attached can't be used as relay terminal.

Characteristics Data

Option

Downloads
