HTC-001
Optical Data Transmission DeviceParallel type
This product is no longer in production or sales.
Handy type E84 tester for checking the unit of the optical data transmission device (DMG,DMJ and DMS).
Possible to check transfer sequence and read the log data.
Overview
Read-out log data(Optical SFOC function)

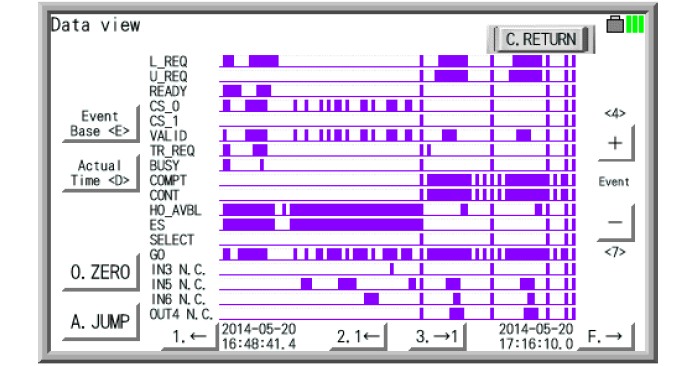

Optical communication data downloaded from the optical data transmission device with logging function (DMG,DMJ series) can be displayed as a timing chart when troubles such as interlock occur.
Optical communication data can be saved and read out.
Optical communication data can be saved and read out.
Log data can be saved on PC
Log data read by HTC-001 can be saved on PC and displayed with the application.
*The application is included with the unit.
*The application is included with the unit.
Operation check of Interlock system (Optical RIS function)
SEMI E84 simulator.
It is possible to select the type of a tested item (Passive/Active), the test pattern (Load/Unload) and also to confirm the transfer operation(bit I/O interlock operation transition state).
*The available transfer type is Single only.
It is possible to select the type of a tested item (Passive/Active), the test pattern (Load/Unload) and also to confirm the transfer operation(bit I/O interlock operation transition state).
*The available transfer type is Single only.
Model
| Model | Code number | Transmission distance |
| HTC-001 | WHTC001 | 0.6m |
Specification
| E84 Handheld Tester | ||
| Model | HTC-001 | |
| Transmission directions | Head-on | |
| Power source | Nickel hydrogen battery×4(4.8V) AC adapter | |
| Current consumption | 800mA or less | |
| Transmission distance | 0.6m | |
| Battery life | About 7 hours(while continuous use[back light setting 1]) | |
| Charging time | About 3 hours | |
| Operating temperature/humidity | 0℃～+40℃・85%RH or below(without dew and condensation) | |
| Ambient illumination | Incandescent lamp:4000 lx or below, halogen 4000 lx or below | |
| Impact resistance | 490m/s2(50G) X，Y，Z three directions Three times for each direction (JIS5026) |
|
| Protective structure | No protection | |
| Outside dimension | 266×144×63mm | |
| Case weight | Approx.900g | |
| Application software | Function | ・Displays log data of HTC-001 ・Displays sequence test reports |
| Display method | Timing chart(log data)・Excel spreadsheet(test report) | |

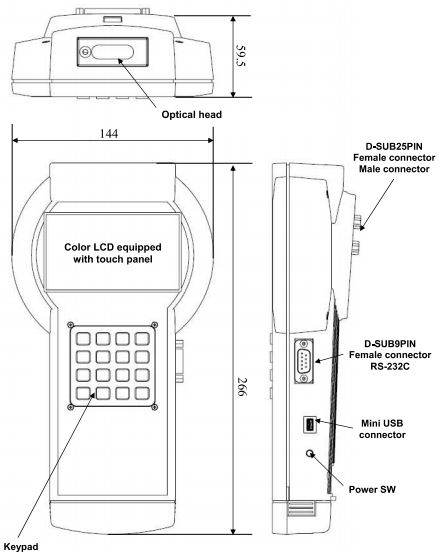

External dimension
