UST-10LXB-H02
Scanning RangefinderDistance Data Output
A new model supporting PoE (Power over Ethernet) has been added to our lineup.
It features 10m detection range and 270° scanning angle, with data output capability.
Both power supply and data communication are possible through a single LAN cable.
Ideal for interactive content and digital picking applications.
Overview

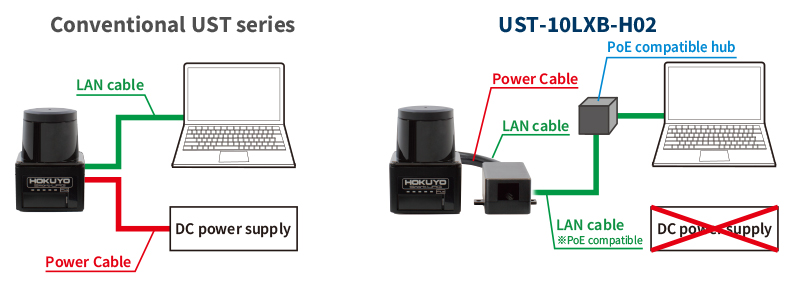

What is PoE ?
PoE stands for Power over Ethernet.
It allows both power supply and data transmission through a single LAN cable.
It allows both power supply and data transmission through a single LAN cable.
Applications utilizing PoE
By using the PoE feature, the device can be installed even in locations without nearby power outlets.
It is ideal for interactive content and digital picking applications.
It is ideal for interactive content and digital picking applications.

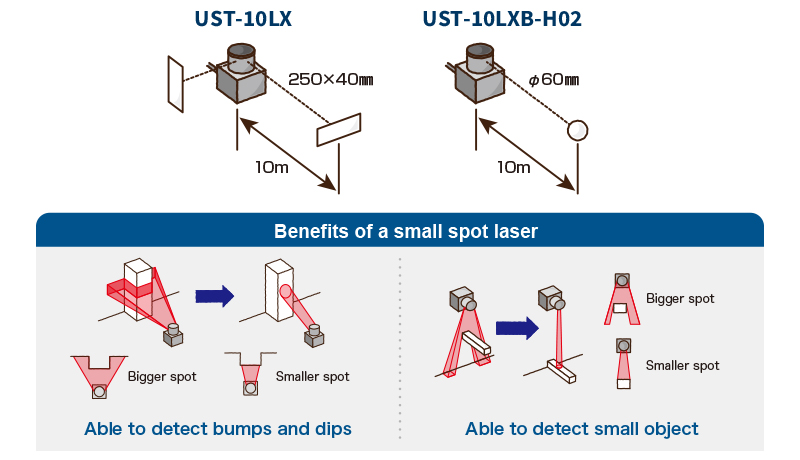

Small Laser Spot
Compared to the standard model, UST-10LXB-H02 features a much smaller laser beam spot.
At a distance of 10m from the sensor, the beam spreads to just φ60 mm.
(The standard model UST-10LX has a beam spread of approximately 250 × 40 mm at the same distance.)
At a distance of 10m from the sensor, the beam spreads to just φ60 mm.
(The standard model UST-10LX has a beam spread of approximately 250 × 40 mm at the same distance.)

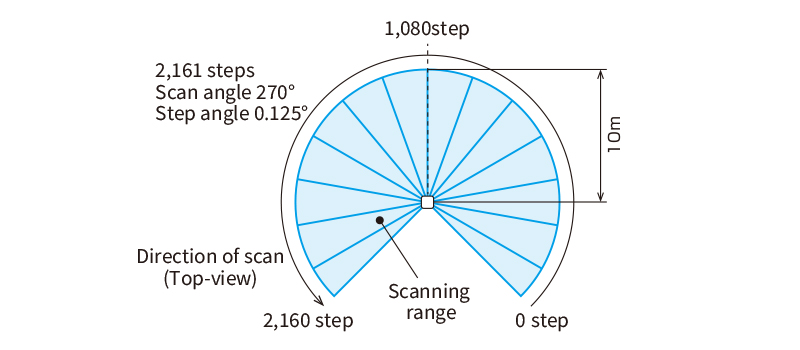

Detection Range
Detection distance: 10m
Detection angle: 270°
Angular resolution: 0.125°
This single unit can acquire distance data over a wide range.
Detection angle: 270°
Angular resolution: 0.125°
This single unit can acquire distance data over a wide range.
Small and lightweight
External dimensions (W × D × H):
Main unit: 50 mm × 50 mm × 70 mm
PoE module: 60 mm × 35 mm × 25 mm
Weight: 130 g (excluding cable)
Thanks to its compact size, it can be installed in a wide variety of locations.
Main unit: 50 mm × 50 mm × 70 mm
PoE module: 60 mm × 35 mm × 25 mm
Weight: 130 g (excluding cable)
Thanks to its compact size, it can be installed in a wide variety of locations.
Real-time sensing
The sensor completes one full scan in 25 ms, rotating at a rapid 40 rotations per second.
This fast scanning speed allows it to detect hand and foot movements in real time, enabling smooth transitions in the visuals and other effects.
This fast scanning speed allows it to detect hand and foot movements in real time, enabling smooth transitions in the visuals and other effects.
Model
| Model Number | Code Number |
| UST-10LXB-H02 | UUST163 |
Specification
| Subject | Specifications |
| Model | UST-10LXB-H02 |
| PoE Specification | Compliant with IEEE802.3af, Class 0 |
| PoE Power supply | 37-57V |
| Supply current | Normal: 3W (Startup: 5W) |
| Light source | Laser semiconductor(830nm） FDA Laser class 1 |
| Detection range | Guaranteed range : 0.06m～10m （white Kent sheet） |
| 0.06m～4m (diffuse reflectance 10%） | |
| Max. detection distance：30m（Output limit） | |
| Accuracy | ±40mm （※1） |
| Repeated accuracy | σ< 30mm （※1） |
| Scan angle | 270° |
| Scan speed | 25msec (Motor speed 2400rpm) |
| Angular resolution | 0.125° |
| Start up time | Within 10sec (Start up time differs if malfunction is detected during start up) |
| Interface | Ethernet 100BASE-TX |
| LED display | Power supply LED display(Blue): Blinks during start up and malfunction state |
| Ambient temperature and humidity | －10℃～＋50℃, below85％ＲＨ （without dew, frost） |
| Surrounding intensity | Less than 80,000lx |
| Note）Avoid direct sunlight or other illumination sources as it may cause sensor malfunction | |
| Storage temperature and humidity | -30℃～+70℃, below 85％ＲＨ（without dew, frost） |
| Vibration resistance | 10～55Ｈｚ double amplitude of 1.5ｍｍ in each Ｘ．Ｙ．Ｚdirection for 2hrs |
| 55～200Ｈｚ 98ｍ/ｓ2 Sweep of 2min in each Ｘ．Ｙ．Ｚdirection for 1hr | |
| Vibration resistance (Operating) |
55～150Ｈｚ 19.6ｍ/ｓ2 |
| Rear and bottom mounting: Sweep of 2min in each Ｘ．Ｙ．Ｚdirection for 0.5hr | |
| Shock resistance | 196ｍ/s2（20Ｇ）10 times in each Ｘ．Ｙ．Ｚdirection |
| EMC standards | EN61326-1：2013 |
| （EMI） | |
| EN55011：2009 + A1：2010 | |
| （EMS） | |
| EN61000-4-2：2009 | |
| EN61000-4-3：2006 + A1：2008 + A2：2010 | |
| EN61000-4-4：2012 | |
| EN61000-4-6：2014 | |
| EN61000-4-8：2010 | |
| RoHS directive | (EU)2015/863 |
| Protective structure | IP40 |
| Weight | 130g (excluding cable) |
| Material | Optical window:Polycarbonate, Body: Aluminum, PoE Splitter: Polycarbonate |
| Dimensions (W×D×H) |
50mm×50mm×70mm（Sensor only）/60mm×35mm×25mm(PoE Splitter) |

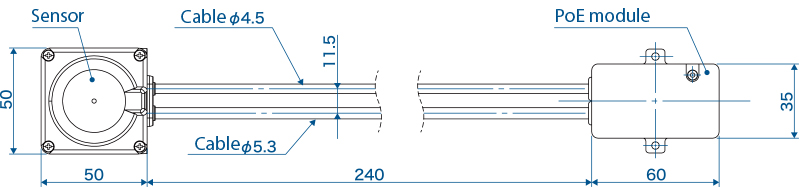

External dimension
