Products Detail
UXM-30LX-EW
Scanning RangefinderDistance Data Output
SOKUIKI sensor for intelligent robots
Overview
Features
-> Supply voltage 10～30V
-> Measurement distance 30m
-> Field of view 190°
-> Interface Ethernet
-> Multi-echo
-> IP67
-> Measurement distance 30m
-> Field of view 190°
-> Interface Ethernet
-> Multi-echo
-> IP67
Specification
| Model No. | UXM-30LX-EW |
| Power source | DC10 to 30V |
| Light source | Laser diode (λ = 905nm) Class 1 (FDA) |
| Supply Current | Regular current: DC10V(<600mA), DC12V(<600mA), DC24V(<250mA) Start-up current: DC10V(<2A), DC12V(<1.5A), DC24V(<0.75A) |
| Power consumption | Less than 6W (regular) |
| Detection range & Detectable width | Assured detection: 0.1 to 30m*2, Max. detectable distance: 100m (limitation of data output) Black(diffuse reflectance 10%), 500 mm × 500 mm Min. detectable width: φ65mm (5m), φ130mm(10m), φ400mm(30m) |
| Accuracy | Under 3,000lx : ±50mm*1 (Black diffuse reflectance 10% at 10m, White Kent Sheet at 30m) Under 100,000lx : ±100mm*1 (Black diffuse reflectance 10% at 10m, White Kent Sheet at 30m) |
| Measurement resolution & Repeated accuracy | 1mm Under 3,000lx : σ<50mm (Black diffuse reflectance 10% up to 10m, White Kent Sheet up to 30m) Under 100,000lx : σ<100 mm (Black diffuse reflectance 10% up to 10m, White Kent Sheet up to 30m) |
| Scanning angle | 190° |
| Angular resolution | 0.25°(360°/1440) |
| Scanning speed | 50ms (Motor speed : 1200rpm) |
| Interface | Ethernet 100BASE-TX (Auto-negotiation) |
| Output signal | 2 Output signal: Error output, Synchronous output |
| Indication light | Power (Green), Operation/Error (Orange) : Operating (ON), Error (blink) |
| Ambient Temperature | Operating: -10 to +50 degrees C |
| Ambient Humidity) | 85%RH (Without condensation and frost) |
| Environmental influence | Measured distance will be shorter than actual distance under rain, snow and direct sunlight working environment*2 |
| Vibration resistance | 10 to 55Hz double amplitude of 1.5mm in X,Y,Z direction for 2 hrs. |
| 55 to 200Hz, 19.6 m/s2 sweep 2 min, in X, Y, Z direction , 1hr for each direction |
|
| Shock resistance | 196m/s2 10 times each in X, Y, Z directions |
| Protection structure | IP67 |
| Insulation resistance | 10MΩ |
| Weight | 800g |
| Casing material | Front casing & optical window: Polycarbonate Rear casing: Aluminum |
| Dimensions(W×D×H) | 124mm×126mm×150mm (excluding connector) |
*2 Please verify the actual performance of the sensor under the intended working environment conditions

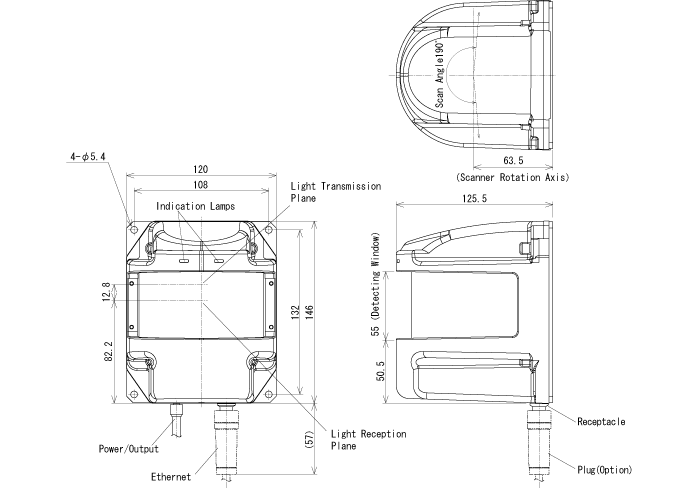

External dimension
External dimension
Downloads
Before Download
Only members can download the file.
If you have not registered as a member, please register as a member by clicking the "Registration".
If you are already a member, please agree to the following terms and click the "Agree".
If you have not registered as a member, please register as a member by clicking the "Registration".
If you are already a member, please agree to the following terms and click the "Agree".
License for Downloading Materials
When downloading the product specifications, drawings and various types of materials and software related to the Hokuyo's product line, please read the terms of use in advance and then utilize the same with your understanding and consent. In case of dissent, please understand that you cannot register to and be recognized in the download page. (And the Terms of Use may be revised without prior notice.)
Terms of Use
- Intellectual Property Rights
-
- Copyrights and the other rights to contents such as sentences, data and software published on this Website (hereinafter referred to as "Contents") are held by Hokuyo or its suppliers.
- The secondary application (copy, diversion, defacement, analysis, transmission, assignment, rental, licensing, and usage for the purpose of business activities or commercial gain) of the Contents on this Website posted by Hokuyo is strictly prohibited without our prior approval. Specific terms of use described for each download site or Contents shall apply in preference to the Terms of Use.
- Provision of the Contents on this Website by Hokuyo means neither a transfer of the patent rights, design rights, and/or the other intellectual property rights to inventions and designs in the Contents, nor a grant of any rights based on the intellectual property rights.
- Disclaimer
-
Hokuyo pays full attention to the information that appears on this Website, but does not take responsibility for the following items:
- The information that appears on this Website is always the latest version, and is updated or corrected timely and properly;
- The information that appears on this Website is accurate, useful and safe;
- Customer's damage incurred by the use of this Website, including changes or deletions of the information, discontinuation or suspension of the publication; and
- Any and all damage incurred by using this Website.
Download List
| Category | File name | File size | Date modified | Download |
|---|---|---|---|---|
 |
Specifications_UXM-30LX-EW |
--- |
2017-04-11 |
|
|
Communication Protocol Specifications_UXM-30LX-EW |
--- |
2017-04-11 |
|
|
Data Viewing Tool_UrgBenriPlus_2.3.2(rev.343) |
--- |
2024-07-22 |
|
 |
2DCAD(dxf)_UXM-30LX-EW |
--- |
2017-04-27 |
|
 |
3DCAD(IGES)_UXM-30LX-EW |
--- |
2017-04-27 |
|
|
3DCAD(STEP)_UXM-30LX-EW |
--- |
2017-04-27 |
Programming
Please visit this website for programming guide.
