Products Detail
UST-05LX

UST-05LX CE

Scanning RangefinderDistance Data Output

Compact size W50×D50×H70mm
Detection range 5m
Wide detection angle 270°
Fast response 40Hz
High angular resolution 0.25°

Overview

Features

> The smallest and the lightest of its kind, W50×D50×H70mm
> It is possible to detect size, position and the moving direction of objects.
> Detection range 5m
> Wide detection angle 270°
> Fast response 25msec
> High angular resolution 0.25°

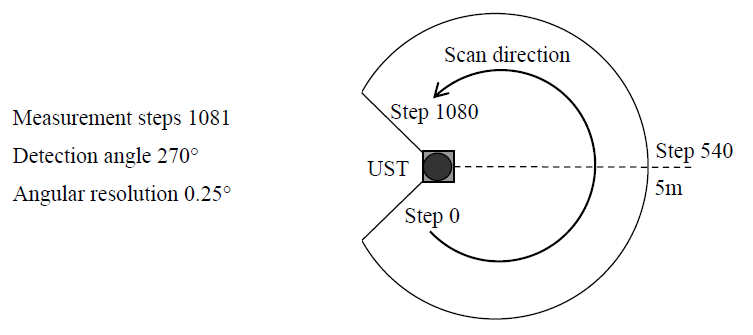

Scanning Image

Scanning Image

Specification

Product name Laser range finder
Model UST-05LX
Supply voltage 12VDC/24VDC (operation range 10 to 30V ripple within 10%)
Supply current 150mA or less (during start up 450mA is necessary)
Light source Semiconductor laser, λ=905nm, safety class of the laser = 1
Detection range 0.06m to 5m (white Kent sheet)
0.06m to 2m (diffuse reflectance 10% )
Maximum detection distance : 15m (maximum performance value)
Accuracy +/-40mm *1
Repeated accuracy σ<30mm*1
Scan angle 270°
Scan speed 25ms (Motor speed 2400rpm)
Angular resolution 0.25°
Start up time Within 10 sec (start up time differs if malfunction is detected during start up)
Input IP reset input, photo-coupler input (current 4mA at ON)
Output Synchronous Output, photo coupler open collector output 30VDC 50mA MAX
Interface Ethernet 100BASE-TX
LED display Power supply LED display(Blue) : Blinks during start up and malfunction state
surrounding intensity Less than 80,000lx
Note : Avoid direct sunlight or other illumination sources as it may cause sensor malfunction
Ambient temperature and humidity -10°C to +50°C, below 85%RH (without dew, frost)
Storage temperature and humidity -30°C to+70°C, below 85%RH (without dew,frost)
Vibration resistance 10 to 55Hz double amplitude of 1.5mm for 2hrs in each X, Y, and Z direction
55 to 200Hz 98m / s2 sweep of 2min for 1hr in each X,Y and Z direction
Vibration resistance(Operating) 55 to 150Hz 19.6m/s2 sweep of 2min for 30min in each X,Y and Z direction
Shock resistance 196m/s2 (20G) X,Y and Z direction 10 times
EMC standards (EMI)
EN61326-1:2013
EN55011:2009 + A1:2010
(EMS)
EN61326-1:2013
EN61000-4-2:2009
EN61000-4-3:2006 + A1:2008 + A2:2010
EN61000-4-4:2012
EN61000-4-6:2009
EN61000-4-8:2010
Protective structure IP65
Weight 130g(Excluding cable)
Material Front case: Polycarbonate, Rear case: Aluminum
Dimensions (W×D×H) 50×50×70mm(sensor only)
*1. Under the factory standard testing conditions using white Kent sheet.

External dimension

External Dimension

External Dimension

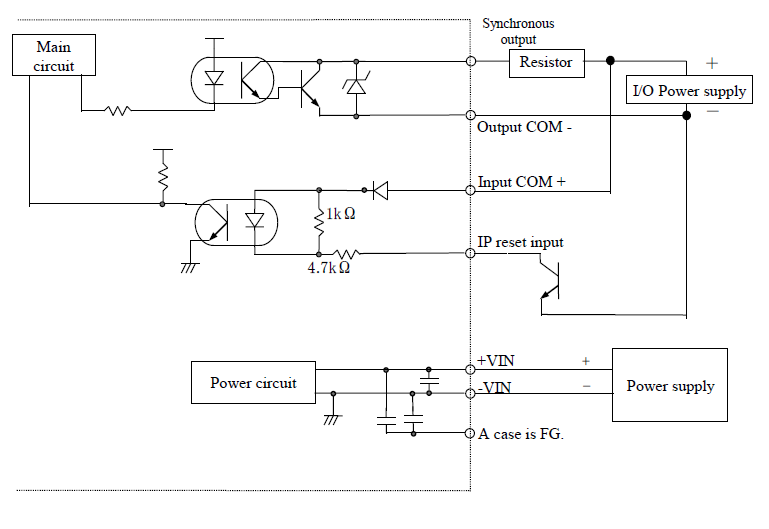

I/O Circuit

I/O circuit

I/O circuit

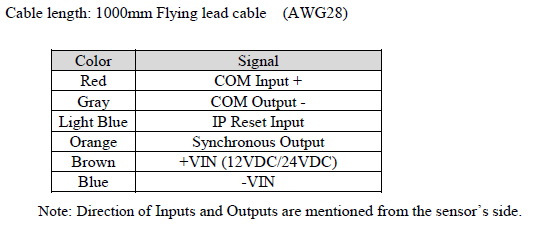

Connection (Power source, I/O cable)

Connection (Power source, I/O cable)

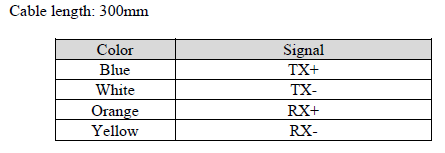

Connection (Ethernet cable)

Connection (Ethernet cable)

Downloads

Before Download

Only members can download the file.
If you have not registered as a member, please register as a member by clicking the "Registration".
If you are already a member, please agree to the following terms and click the "Agree".

License for Downloading Materials

When downloading the product specifications, drawings and various types of materials and software related to the Hokuyo's product line, please read the terms of use in advance and then utilize the same with your understanding and consent. In case of dissent, please understand that you cannot register to and be recognized in the download page. (And the Terms of Use may be revised without prior notice.)

Terms of Use

Intellectual Property Rights
  • Copyrights and the other rights to contents such as sentences, data and software published on this Website (hereinafter referred to as "Contents") are held by Hokuyo or its suppliers.
  • The secondary application (copy, diversion, defacement, analysis, transmission, assignment, rental, licensing, and usage for the purpose of business activities or commercial gain) of the Contents on this Website posted by Hokuyo is strictly prohibited without our prior approval. Specific terms of use described for each download site or Contents shall apply in preference to the Terms of Use.
  • Provision of the Contents on this Website by Hokuyo means neither a transfer of the patent rights, design rights, and/or the other intellectual property rights to inventions and designs in the Contents, nor a grant of any rights based on the intellectual property rights.
Disclaimer

Hokuyo pays full attention to the information that appears on this Website, but does not take responsibility for the following items:

  • The information that appears on this Website is always the latest version, and is updated or corrected timely and properly;
  • The information that appears on this Website is accurate, useful and safe;
  • Customer's damage incurred by the use of this Website, including changes or deletions of the information, discontinuation or suspension of the publication; and
  • Any and all damage incurred by using this Website.

Download List

Category File name File size Date modified Download
Manuals
Instruction manual_UST-05LX
---
2018-12-04
Specifications
Specifications_UST-05LX
---
2020-12-14
Communication Protcol
Communication protocol specification_UST-LX series
---
2018-12-04
Firmware(Latest)
UST-LX (UUST2**) series firmware ver.4.0.2AThe latest firmware for UUST2**
It is not possible to update from UUST1**.
Please update from Ver.4.00A.
You can confirm UUST2** from the product label on the sensor body.
All files in the folder are required to start SmartUpdaterCompact, and when you start the exe file, SmartUpdater (SmartUpdaterCompact) with embedded firmware will start.
*There is an exe file for each target model, so please be careful of the file name when updating.
---
2023-10-05
Tool
Data Viewing Tool_UrgBenriPlus_2.3.2(rev.343)
---
2024-07-22
Tool
IP_Discovery_2.1(rev.84) IP address changing tool
---
2022-07-25

Programming

Please visit this website for programming guide.
